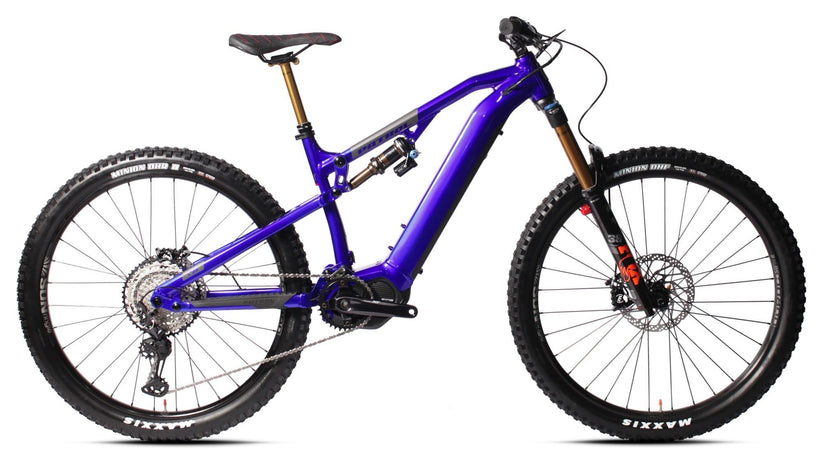

Patrol Mountain Bike E-Six S-Spec - Brilliant Blue
We developed the E-Six frame alongside our new 691 enduro platform with the ultimate goal being to combine the power and terrain taming capabilities of an e-MTB with the agility and versatility of a mechanical enduro bike.
Taking the best features of both we’ve created a 150mm travel e-MTB bike which will handle everything you throw at it and come back for more.
DESIGNED FOR COMBATING THE STEEPEST AND DEEPEST OF TRAILS
THE PATROL E-SIX UTILITIES THE ALL-NEW SHIMANO EP8 POWER PLANT WITH 85NM OF TORQUE AND NEW CUSTOMIZATION SETTING VIA THE UPDATED SHIMANO E TUBE APPLICATION. TUNE YOUR E-SIX TO OFFER MORE RANGE, MORE PERFORMANCE, OR CREATE CUSTOM PROFILES TO SUIT YOUR NEXT ADVENTURE.
Specifications -
| E-BIKE | |
|---|---|
| DRIVE UNIT (MOTOR) | Shimano Steps EP8 |
| BATTERY | SMP, 640Wh |
| CHARGER | - |
| WHEELS | |
| RIMS | 29" SUNringlé Düroc SD37 |
| HUBS | SHIMANO |
| FRONT TIRE | MAXXIS Minion DHF EXO/TR 29×2.60 |
| REAR TIRE | MAXXIS DHR II 29×2.60 |
| FRAMESET | |
| FRAME | PATROL E-SIX alloy, 12×148 mm, 150mm travel |
| DRIVETRAIN | |
| CHAINRINGS | SHIMANO FC-M8150, SM-CRE80-12-B, 34t |
| SHIFT LEVERS |
SHIMANO Deore XT M8100-R |
| CRANKSET | Shimano FC-E8000 |
| CHAIN | - |
| REAR DERAILLEUR | Shimano SLX M7100 |
| BOTTOM BRAKET | - |
| CASSETTE | SHIMANO SLX M7100, 12s, 12-51t |
| COCKPIT | |
| SEATPOST | FOX Transfer Factory, 31.6mm, 125mm |
| SADDLE | - |
| STEM | Forged alloy, 4-bolt, 5mm rise, 40mm |
| HANDLEBARS | - |
| GRIPS | - |
| BRAKES | |
| REAR BRAKE | MAGURA MT5N, 4-piston hydraulic disc brakeset, 180mm |
| FRONT BRAKE | MAGURA MT5N, 4-piston hydraulic disc brakeset, 200mm |
| SUSPENSION | |
| FORK | FOX 38 E Factory, 160mm travel |
| REAR SHOCK | FOX Float DPX2, 3-pos, Kashima |
* Specifications are subject to change without notice.
