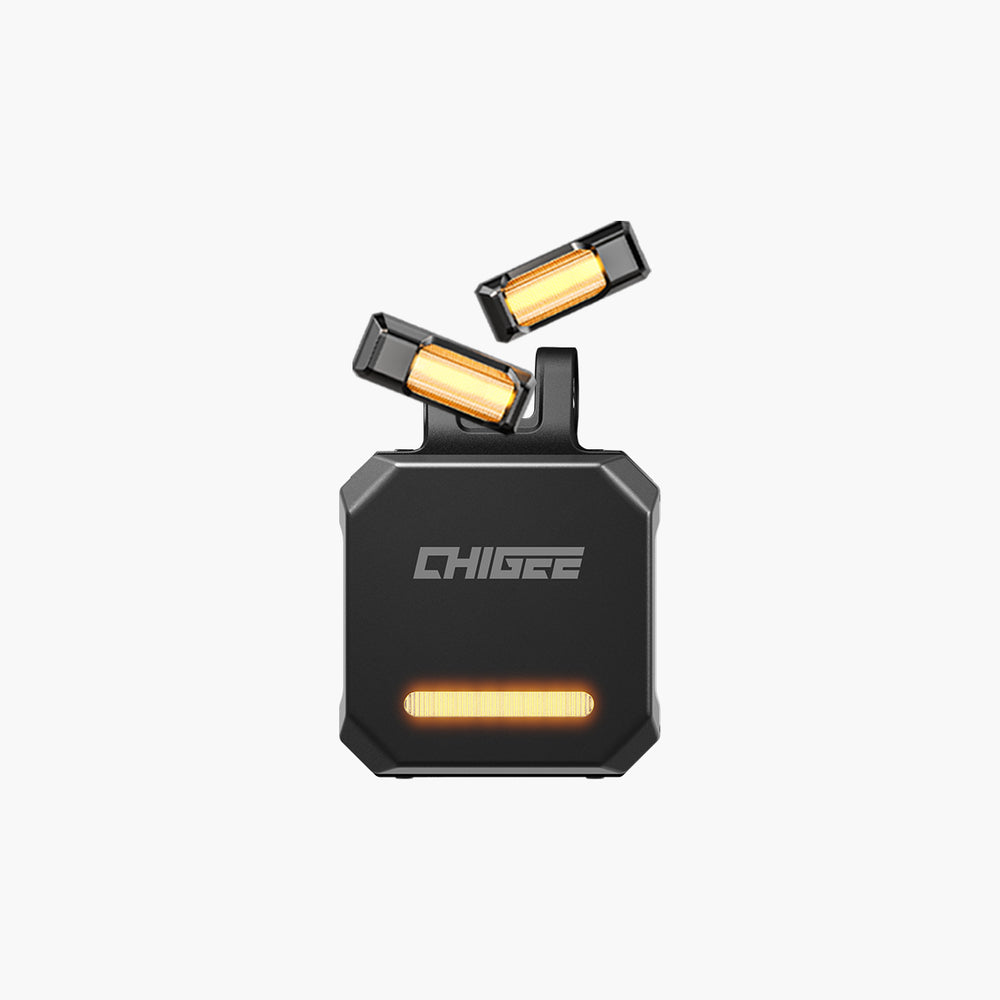

Chigee 77GHz Radar Module with Indicator Light for AIO-5 & AIO-6 Series
The Chigee SR-1 77GHz Radar Module is an automotive-grade millimeter-wave radar system engineered specifically for motorcycles. Designed to enhance rearward awareness, it continuously monitors traffic behind your bike and delivers real-time visual alerts through the included indicator lights or compatible Chigee displays. With a detection range of up to 70 meters, the SR-1 helps riders identify blind-spot vehicles, fast-approaching traffic, and potential rear collision risks in all weather and lighting conditions.
Features:
- Automotive-grade 77GHz millimeter-wave radar technology
- Compatible with Chigee AIO-5 and AIO-6 Series displays
- Detects vehicles up to 70 meters behind the motorcycle
- Included high-visibility indicator lights for standalone operation
- Automatic brightness adjustment via ambient light sensor
- Active rear warning strobe alerts approaching vehicles
- Real-time visual alerts in rain, fog, darkness, and heavy traffic
- Bluetooth OTA update support for future enhancements
- IP68/IP69-rated water and dust resistance
- Universal fit for most 12V motorcycle electrical systems
- Can operate independently or integrate with compatible Chigee displays for on-screen radar visualization and audible alerts
Four intelligent warning modes:
- Blind Spot Detection (BSD)
- Active Overtake Alert (AOA)
- Lane Change Assist (LCA)
- Rear Collision Warning (RCW)
Specifications:
- Radar Frequency: 77GHz
- Detection Range: Up to 70m
- Data Refresh Rate: 15Hz
- Speed Detection Range: ±200 km/h
- Detection Angle: 110° Horizontal / 90° Vertical
- Antenna Configuration: 2Tx / 4Rx
- Operating Voltage: 12–18V DC
- Power Consumption: ?3W
- Wireless Connectivity: BLE 5.0
- Operating Temperature: -25°C to +65°C
- Protection Rating: IP68 / IP69
What's Included:
- SR-1 77GHz Radar Module
- Dual Indicator Warning Lights
- Wiring Harness
- Mounting Hardware and Accessories
- Installation Documentation
