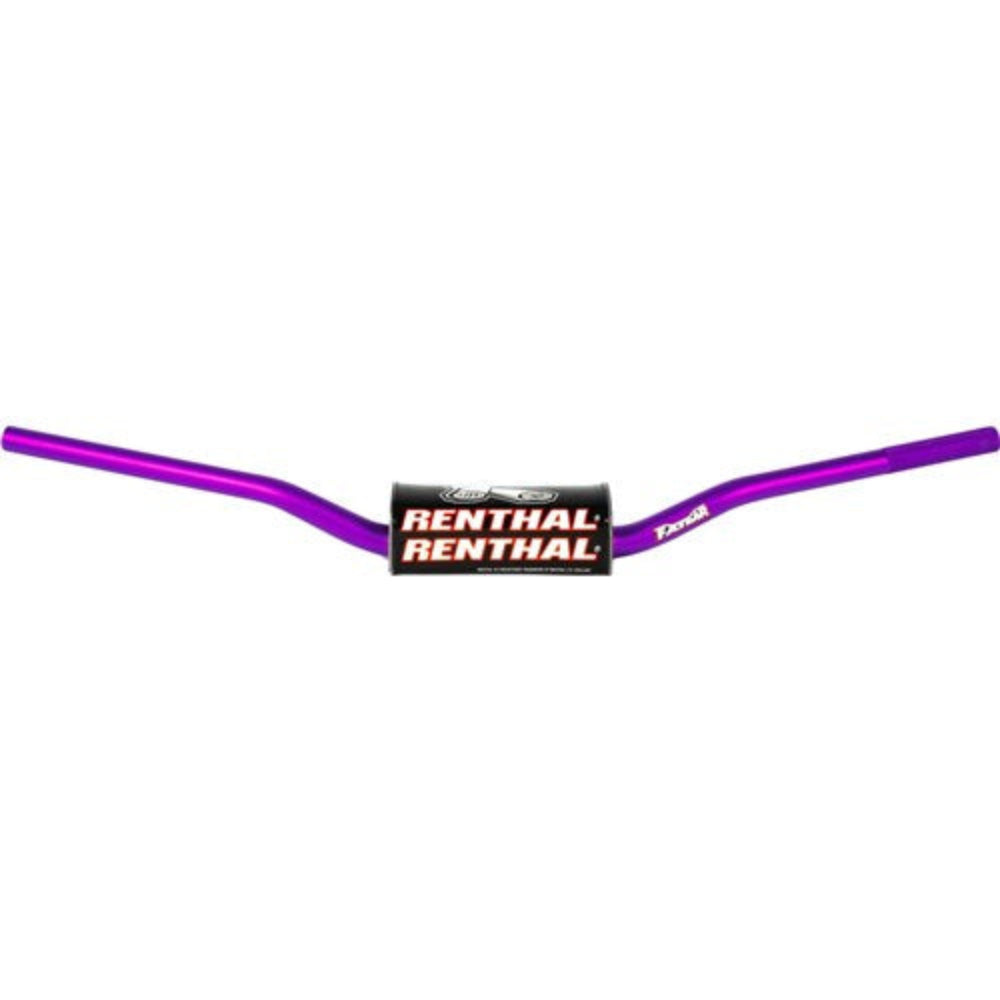

Renthal 60401PE Fatbar RC/OEM Handlebar with Bar Pad Honda/Kawasaki

The championship-proven Renthal Fatbar continues to set the industry standard in unbraced tapered MX handlebars. Featuring an oversized 28.6mm (1-1/8") clamping diameter that tapers to 22.2mm (7/8") to fit standard controls, it is engineered from exclusive 7010 T6 aluminum to provide superior strength, reduced vibration, and long-lasting durability. Designed with Renthal’s signature flex characteristics preferred by professional riders worldwide, the Fatbar is fitted as OE equipment by Honda and Kawasaki.

Positioned almost perfectly in the middle of the Renthal bend range, the RC bend is one of the brand’s most popular handlebar profiles. Originally popularized by Ricky Carmichael during his time with Pro Circuit Kawasaki and American Honda, this bend has since been adopted by top-level riders including MX2 World Champion Jeffrey Herlings.

Also Called:

HONDA CR/CRF 04-13

KAWASAKI KX/KXF 06-13

Features:

• Championship-proven unbraced tapered MX handlebar design.

• Oversized 28.6mm (1-1/8") clamping diameter tapering to 22.2mm (7/8") for standard controls.

• Manufactured from exclusive 7010 T6 aluminum alloy.

• Computer aided profiling for optimized strength and reduced weight.

• Engineered to reduce vibration and improve rider comfort.

• Signature flex characteristics preferred by professional riders.

• High strength construction for durability and long service life.

• Used as OE equipment by Honda and Kawasaki.

Bar Dimensions:

• Width / Dim A: 804mm

• Height / Dim B: 104mm

• Rise / Dim C: 64mm

• Clamping Width / Dim D: 105mm

• Sweep / Dim E: 54mm

• Control Length / Dim F: 188mm

• Dim G: 117mm

• Height / Dim Bv: 104mm

• Mounting Diameter: 28.6mm / 1-1/8"
