Brand new aftermarket Stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.
- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Specifications:
Dimensions
- Interior diameter: 29mm
- Exterior diameter: 83mm
- Thickness : 9 mm
- Length of wires stator to grommet: 40mm
- Length of wires grommet to plug: 130mm
- Length of pickup coil's wire to grommet: 60mm
Other specifications
- Number of wires: 2
- Number of plugs: 2
- Number of pins: 2
Wire to wire resistance
- Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
- Source: Black/Red to Ground = 715 ohms +-20%
Sale
New

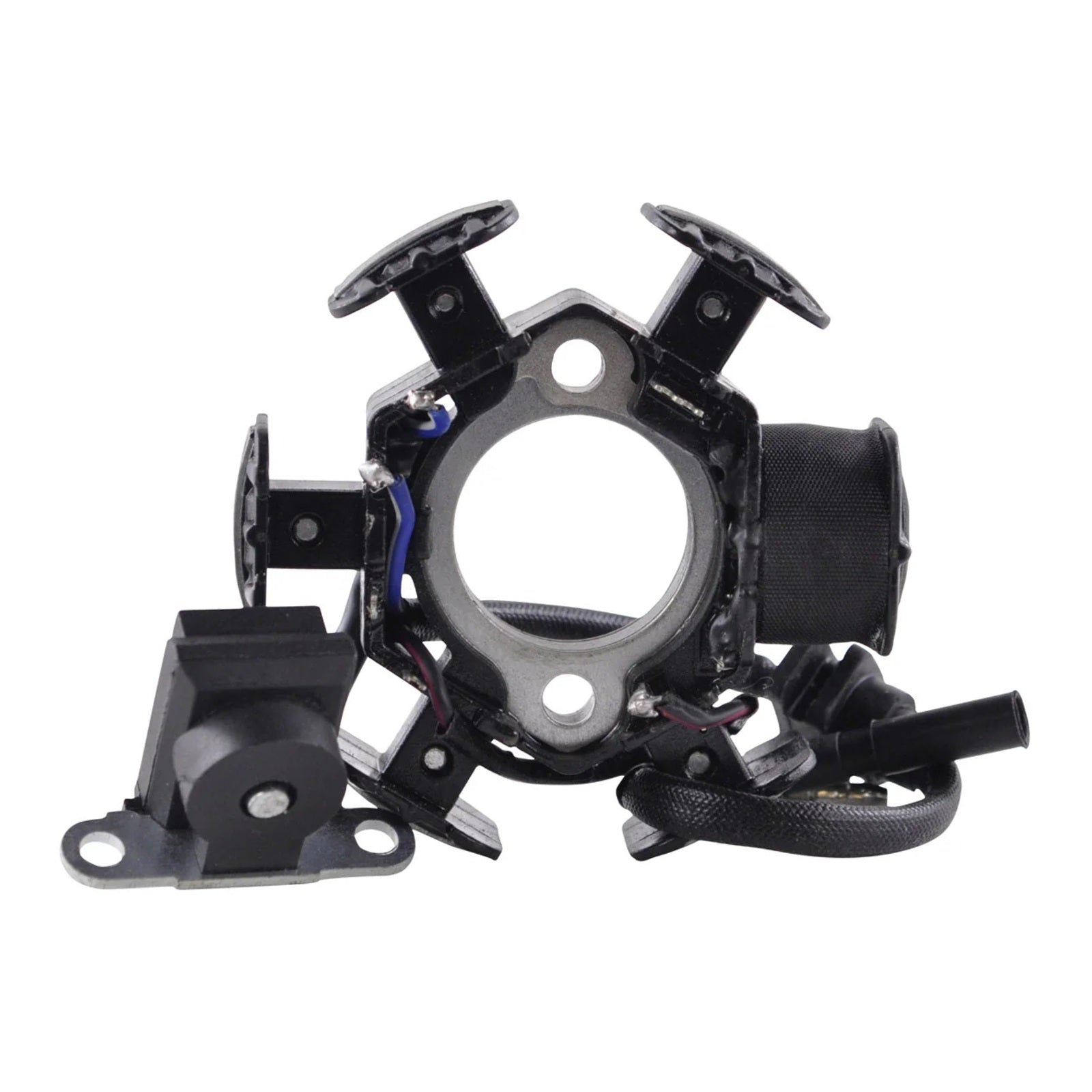

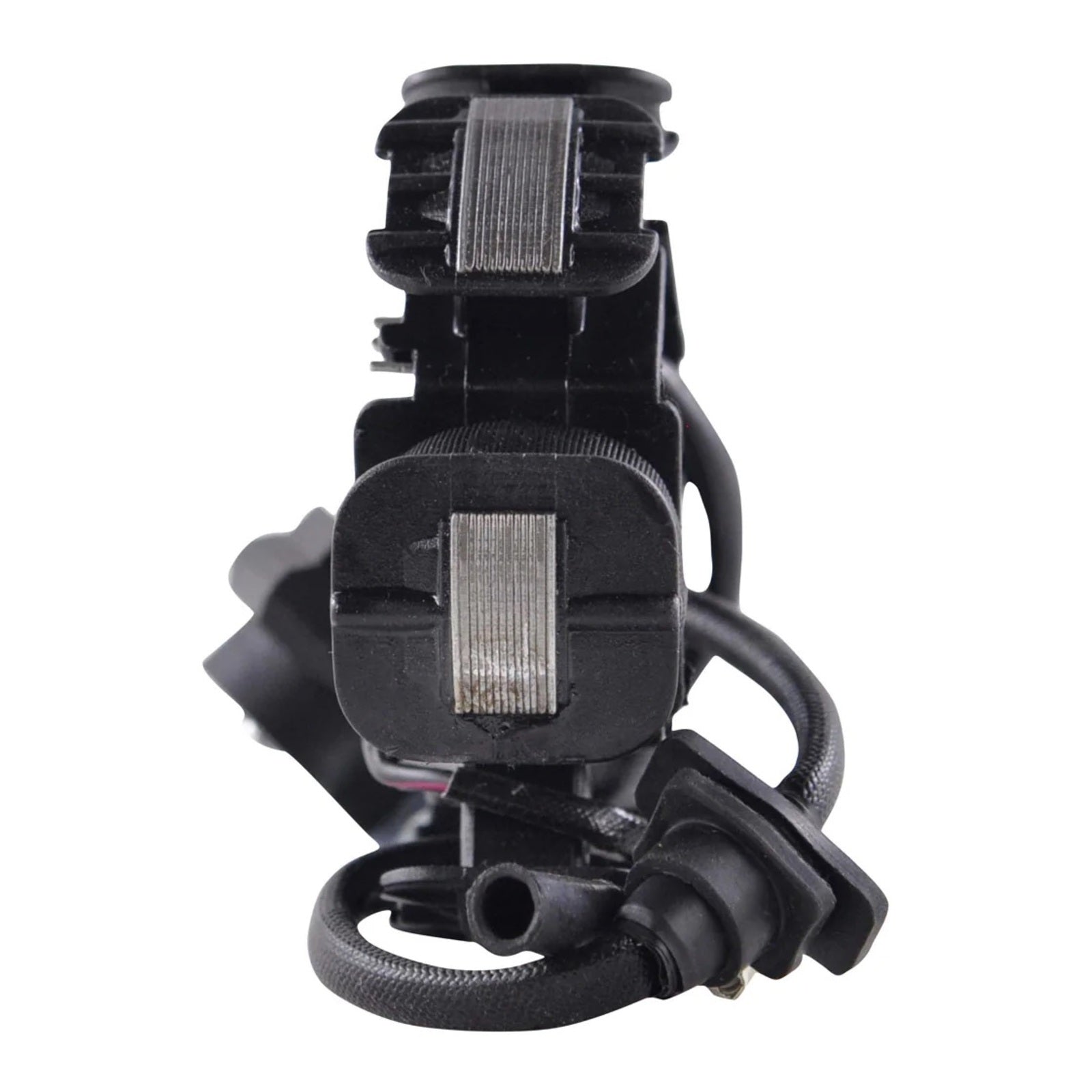

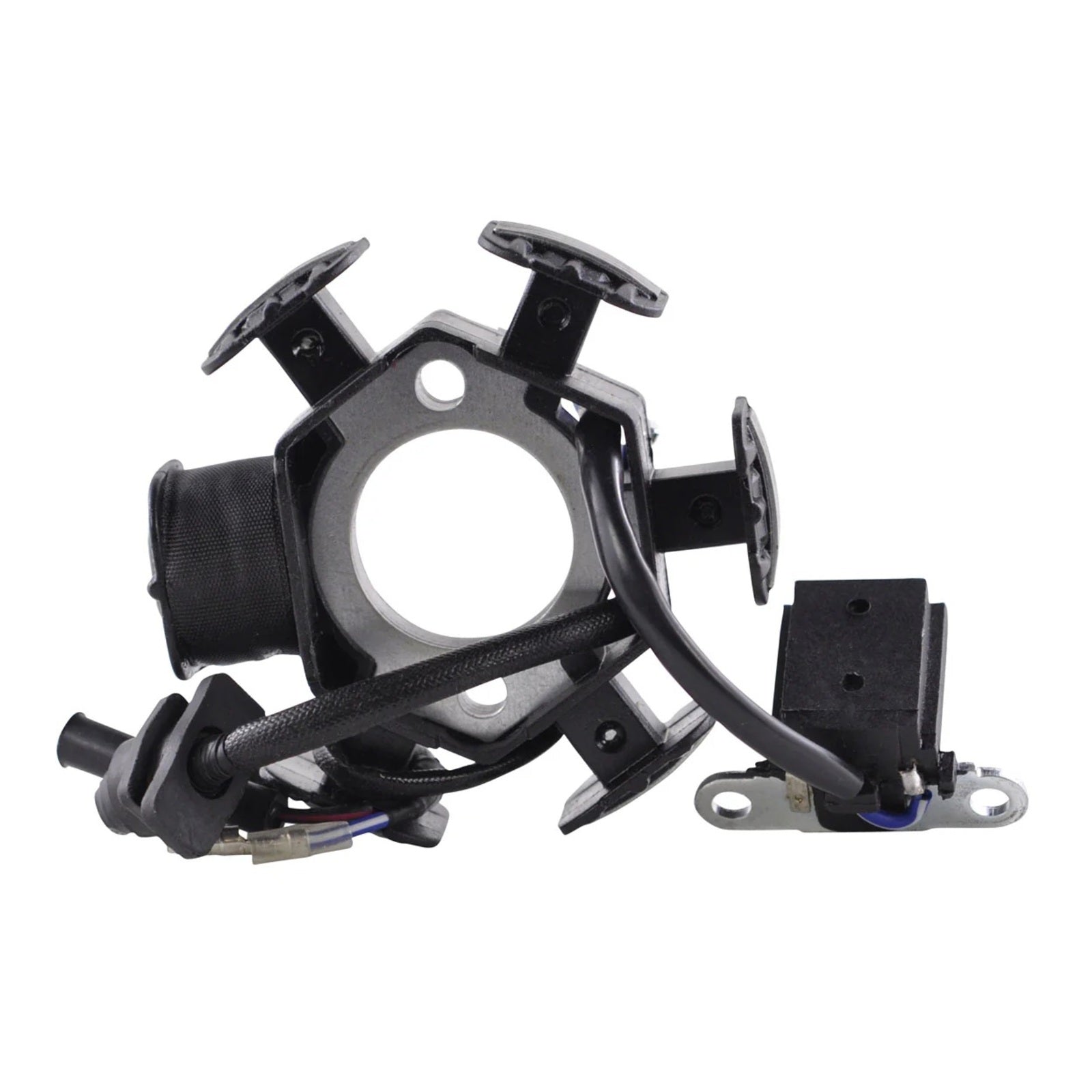

Stator for Honda CRF50F XR50R / Z50R / XR70R '88-'24
by
RMSTATOR
SKU: RMS010101530
Become a Moto Member or Sign in to earn Moto Credits on this purchase.
5% off
Brand new aftermarket Stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.

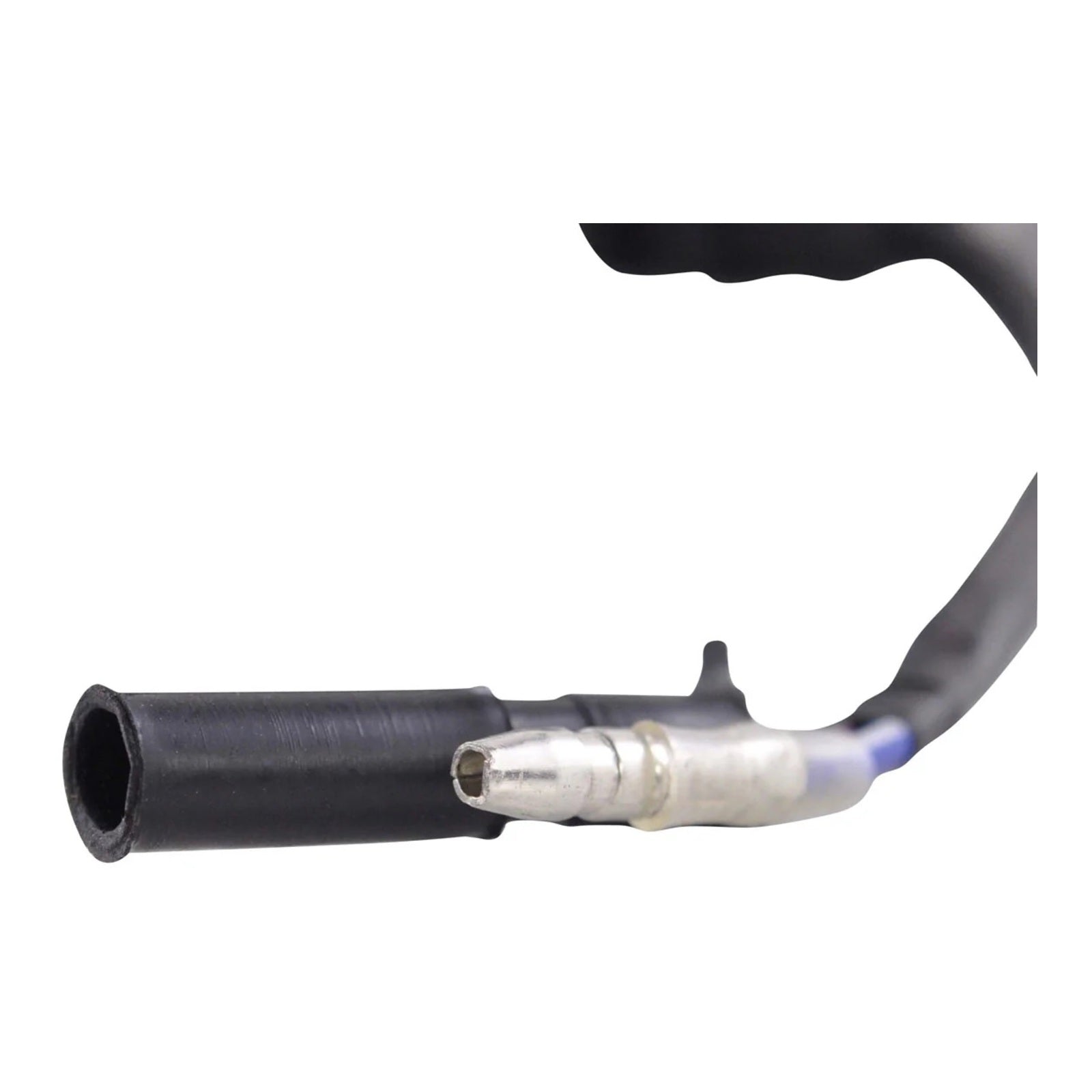

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Specifications:
Dimensions
- Interior diameter: 29mm
- Exterior diameter: 83mm
- Thickness : 9 mm
- Length of wires stator to grommet: 40mm
- Length of wires grommet to plug: 130mm
- Length of pickup coil's wire to grommet: 60mm
Other specifications
- Number of wires: 2
- Number of plugs: 2
- Number of pins: 2
Wire to wire resistance
- Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
- Source: Black/Red to Ground = 715 ohms +-20%
