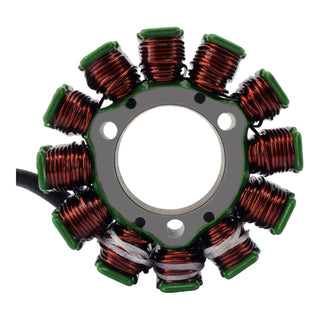

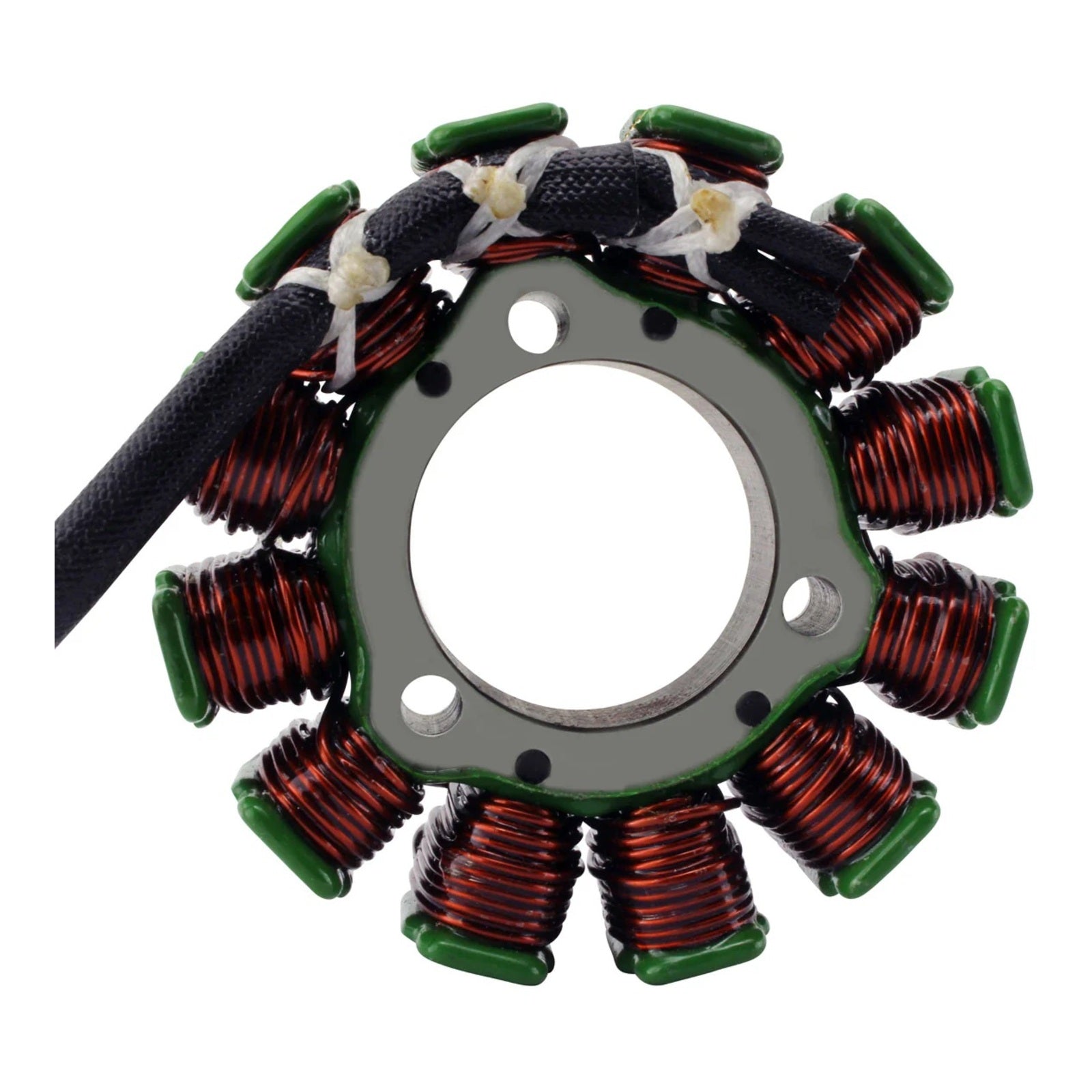

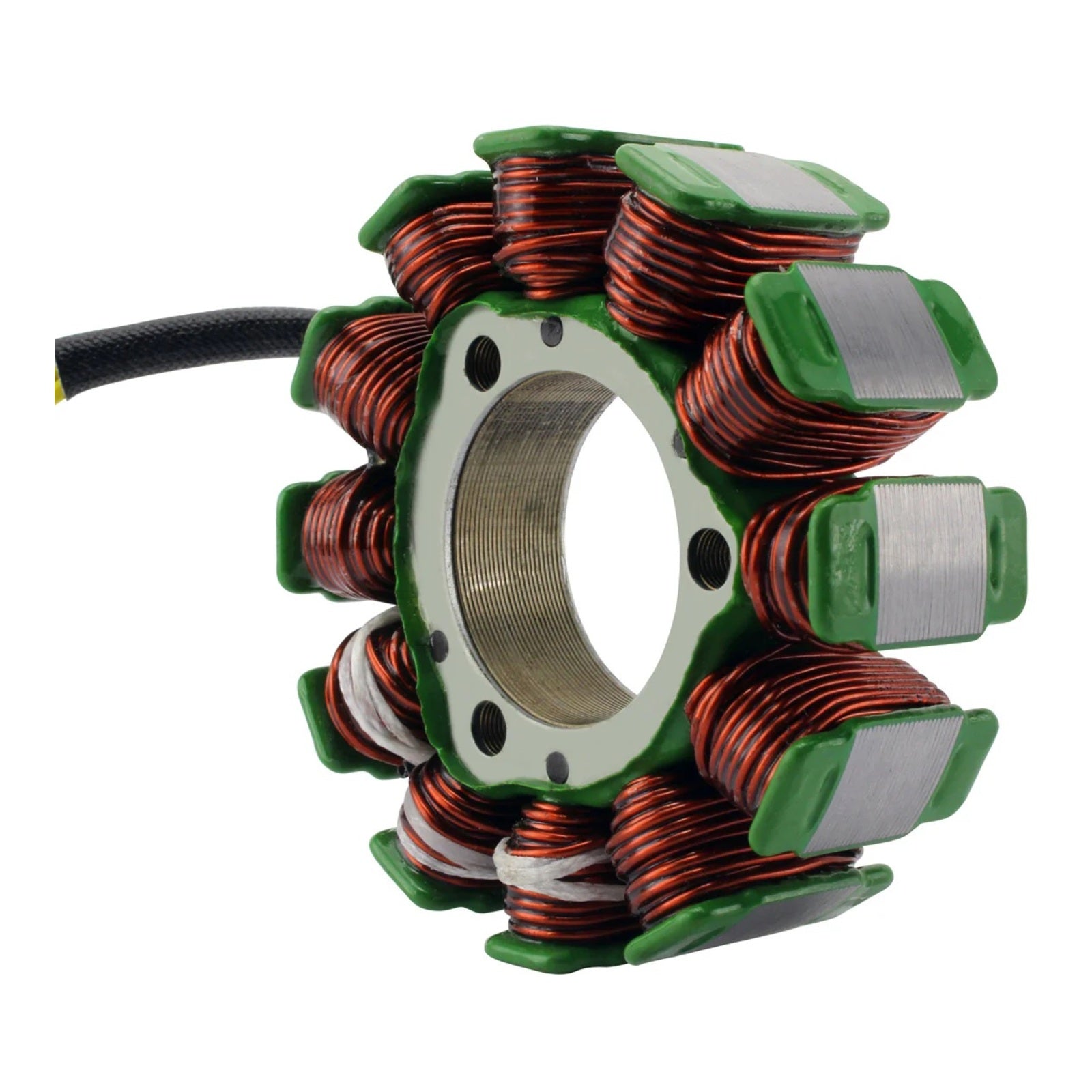

Brand new aftermarket stator. Direct replacement for your original unit.
Features:
- 80W DC output
- Significantly increased power output
- Plug-and-play design for easy installation
- High-grade lamination materials

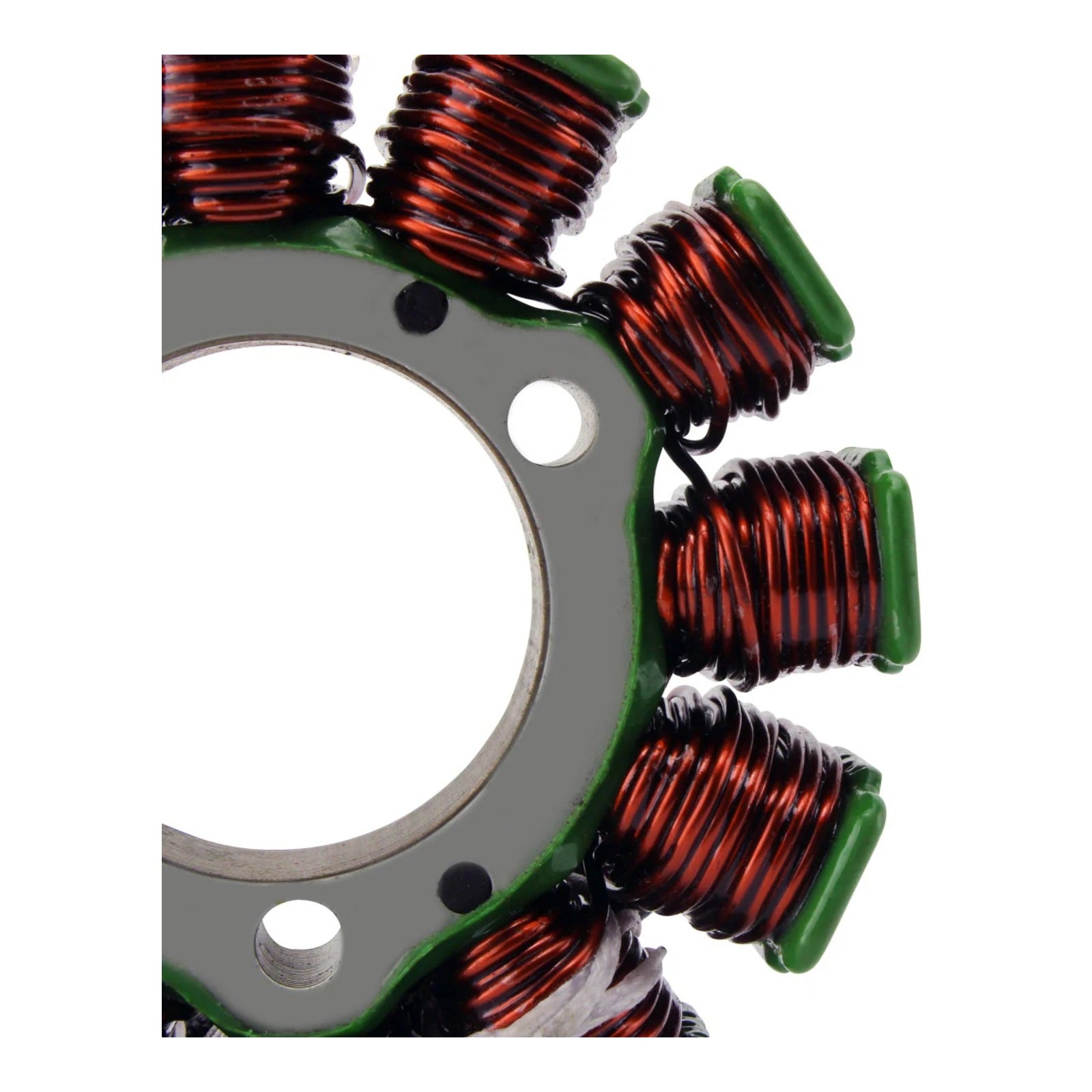

- Premium copper windings, resistant up to 200°C

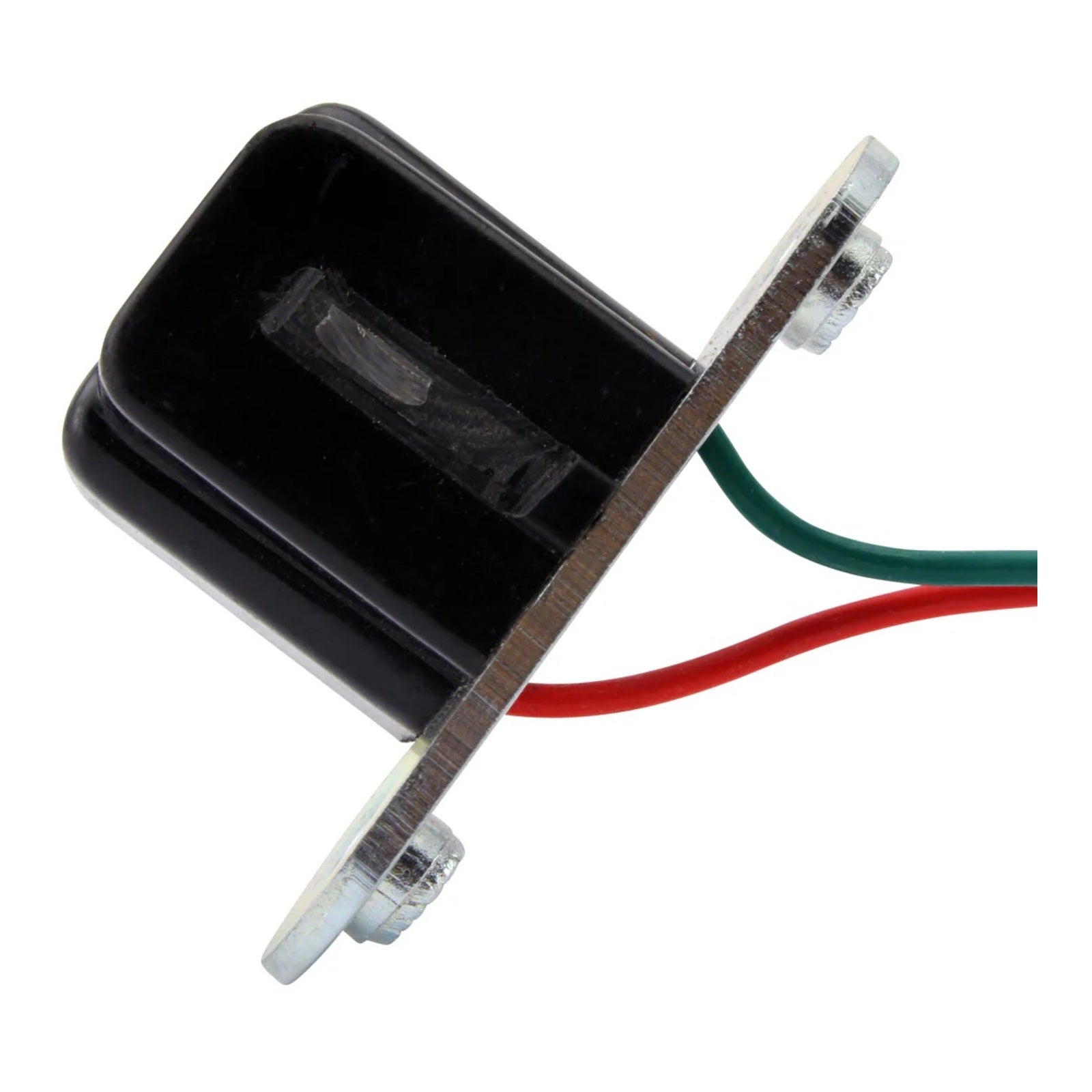

- Pickup pulsar coil included

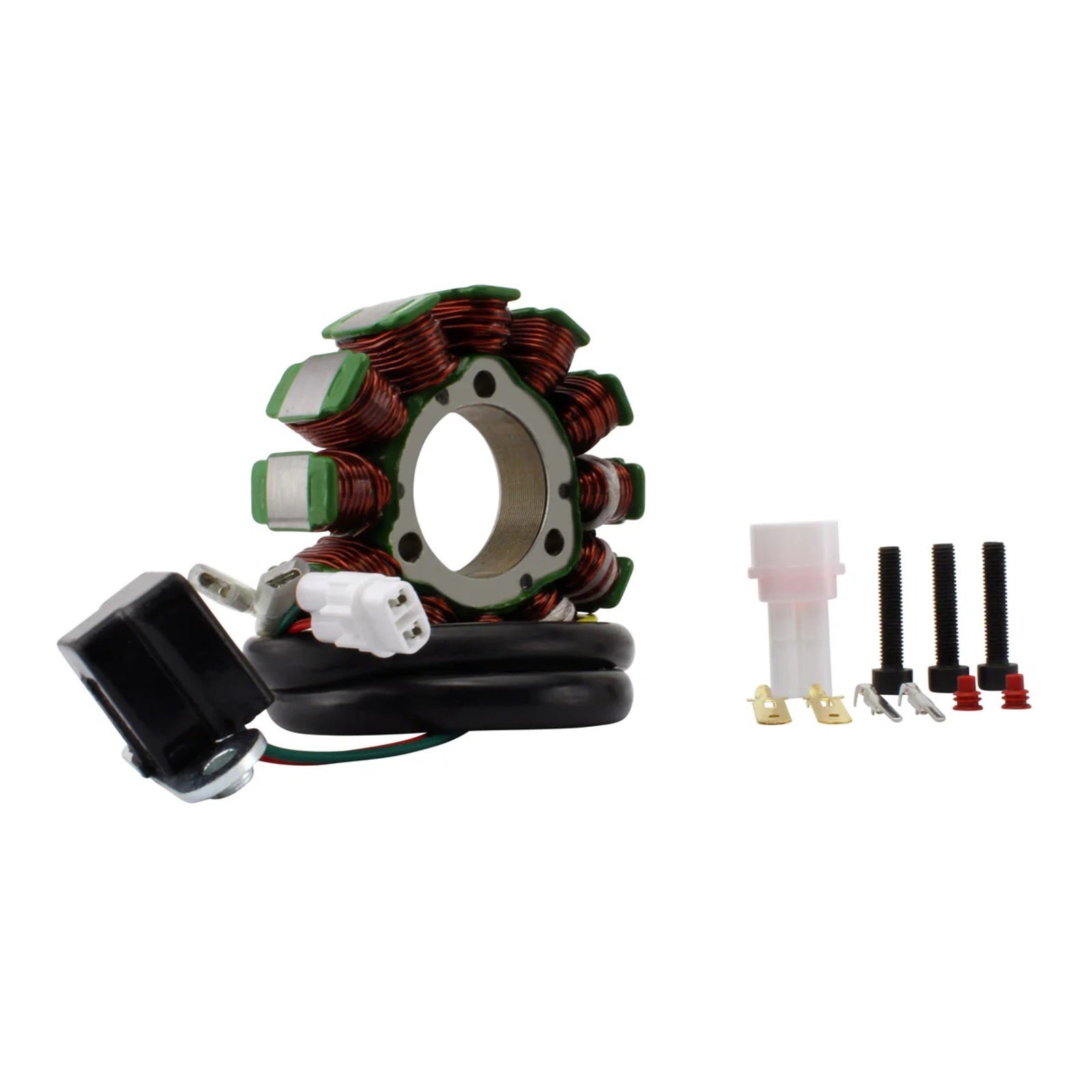

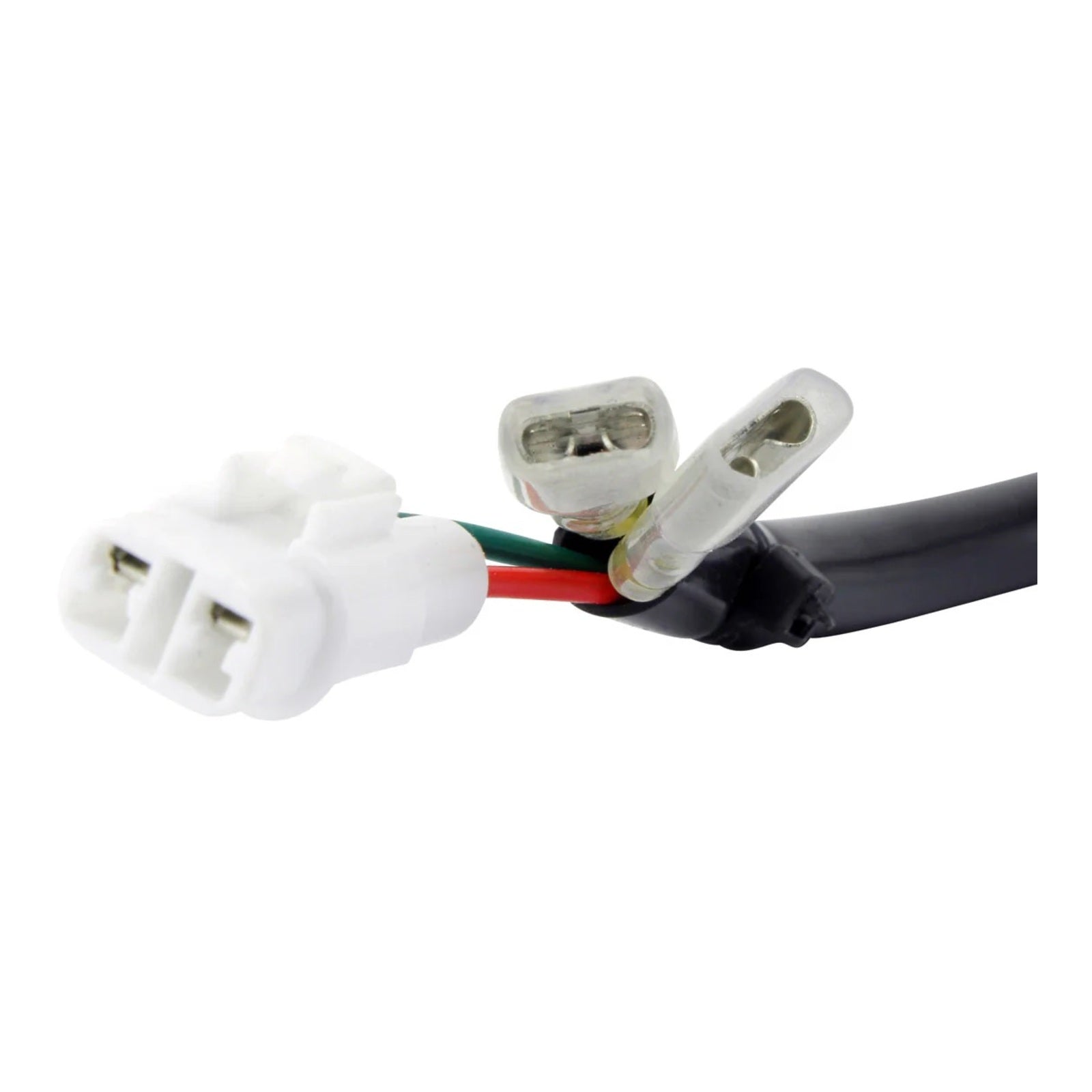

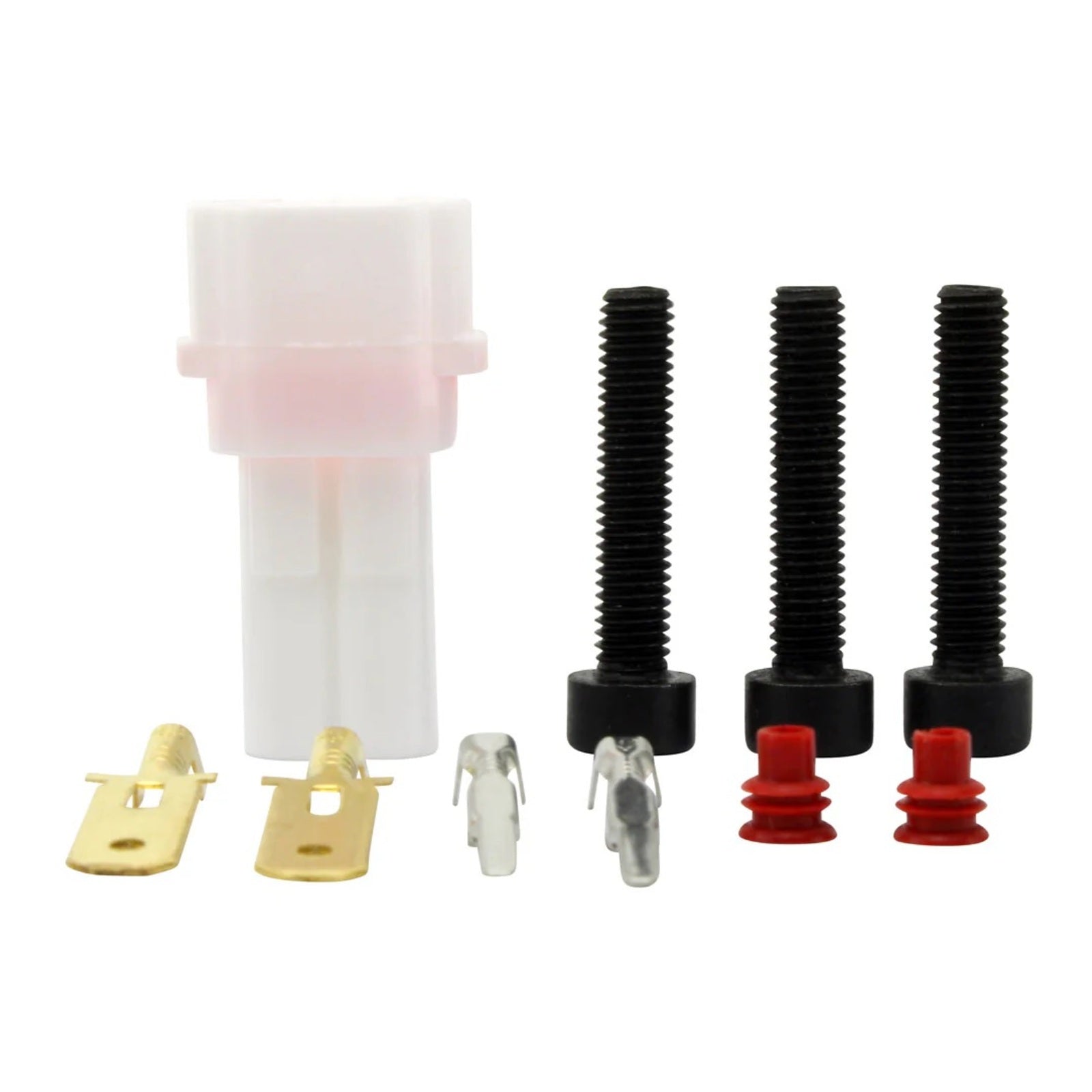

- Connectors included

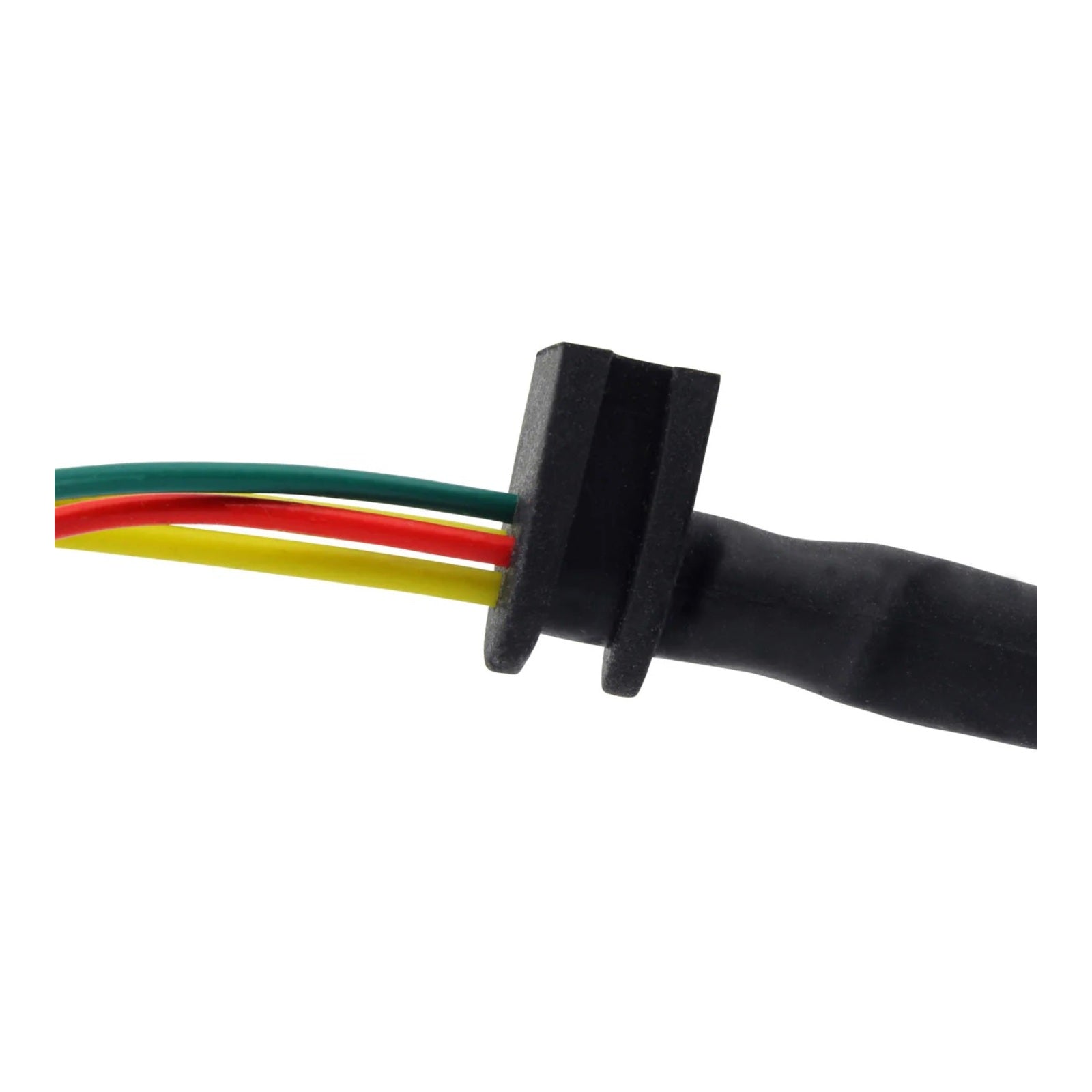

- Rubber grommet included
- All units are tested before shipping
Technical Data
Dimensions
- Interior Diameter: 32mm
- Exterior Diameter: 76mm
- Thickness: 17 mm
Wire Lengths
- Stator to Grommet: 125mm
- Grommet to Plug: 510mm
- Pickup Coil to Grommet: 100mm
Electrical Specifications
- Number of Wires: 4
- Number of Plugs: 1
- Number of Pins: 4

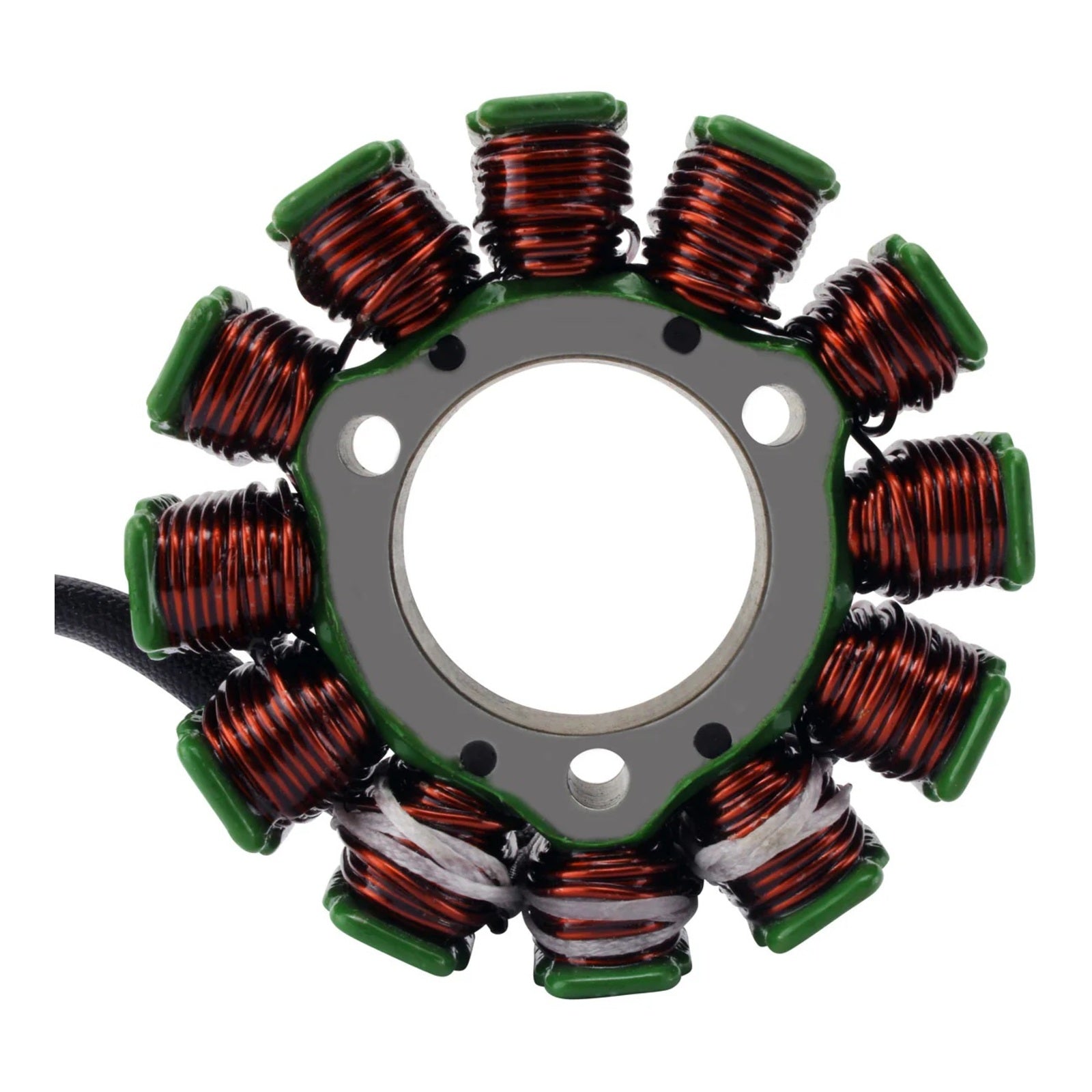

- Number of Poles: 12
Resistance Values
- Alternator (Yellow to Yellow): 0.4 Ω ±20%
- Alternator (Yellow to Ground): O.L (no continuity)
- Pickup Coil (Green to Red): 133 Ω ±20%
Sale
New

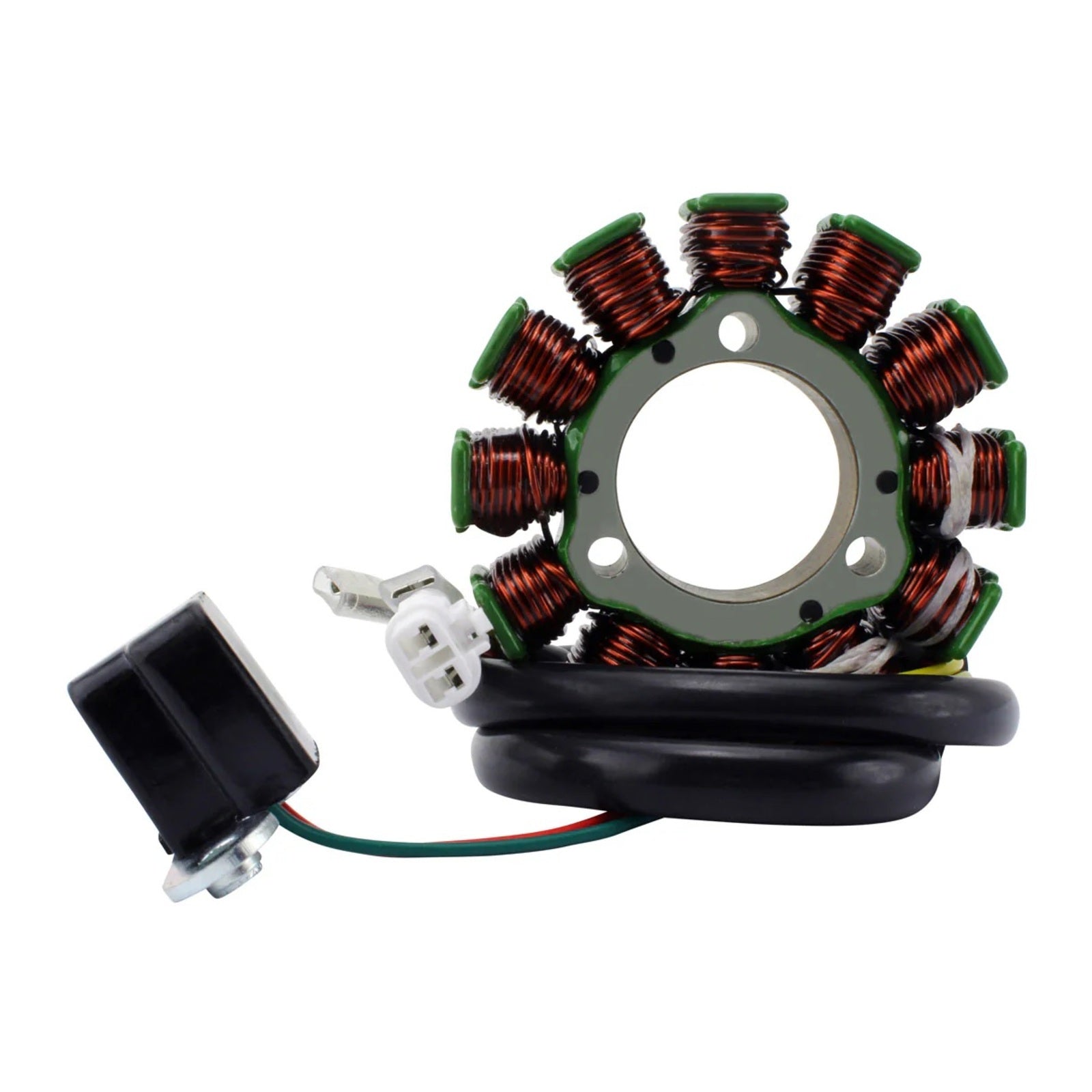

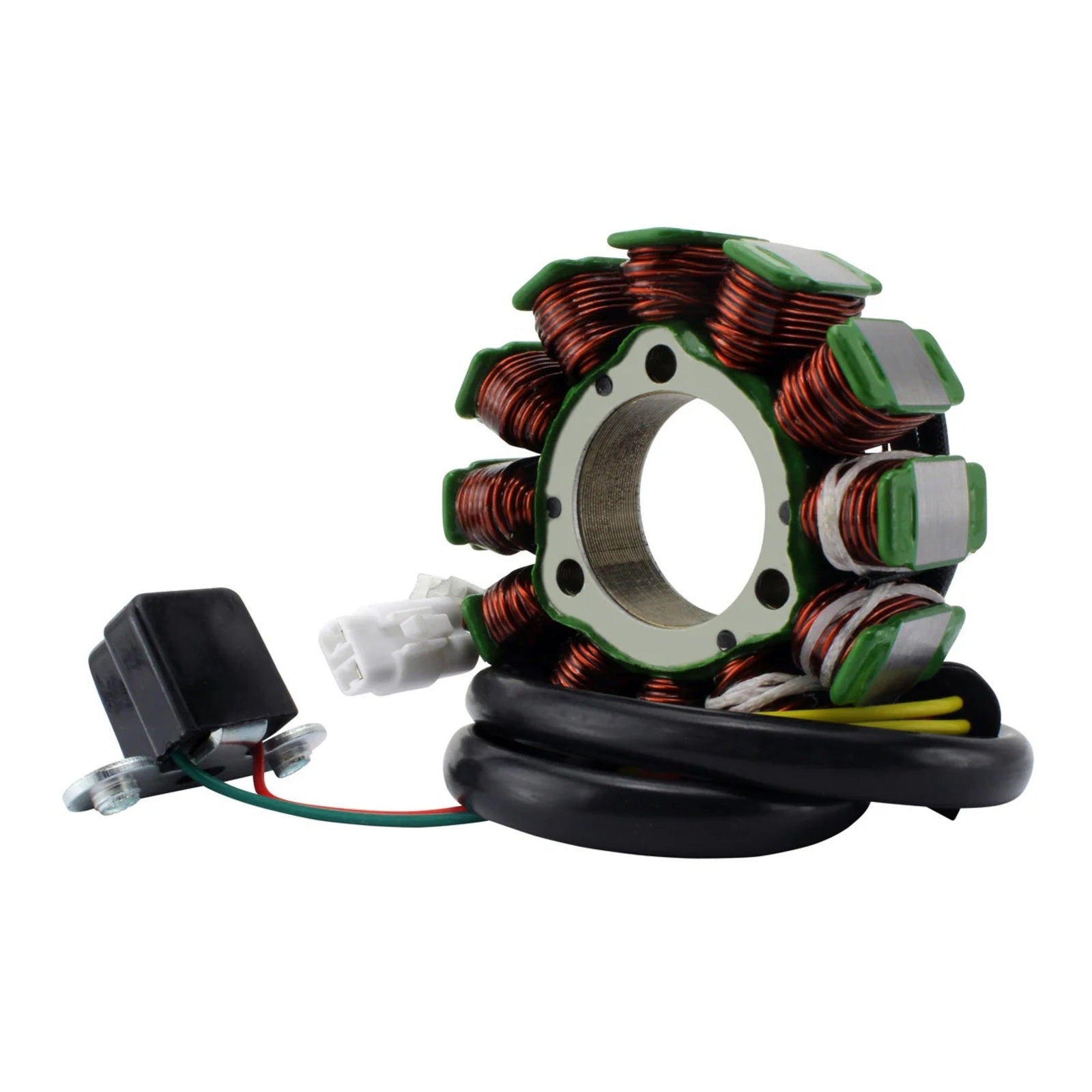

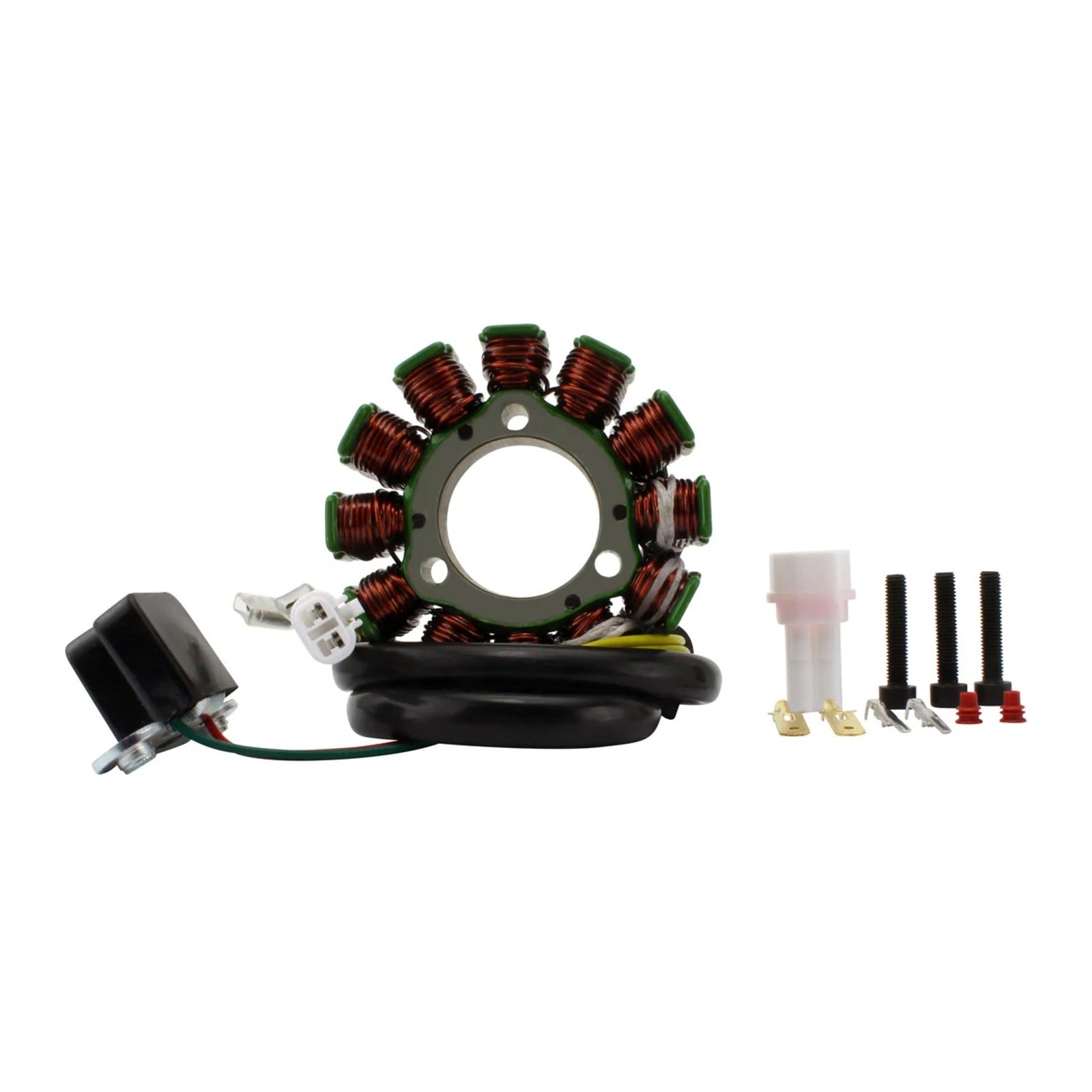

80W High Output Stator - KTM / GasGas / Husqvarna Models
by
RMSTATOR
SKU: RMS010107562
Become a Moto Member or Sign in to earn up to $8.55 Moto Credits on this purchase.
5% off
Brand new aftermarket stator. Direct replacement for your original unit.
Features:
- 80W DC output
- Significantly increased power output
- Plug-and-play design for easy installation
- High-grade lamination materials
- Premium copper windings, resistant up to 200°C
- Pickup pulsar coil included
- Connectors included
- Rubber grommet included
- All units are tested before shipping
Technical Data
Dimensions
- Interior Diameter: 32mm
- Exterior Diameter: 76mm
- Thickness: 17 mm
Wire Lengths
- Stator to Grommet: 125mm
- Grommet to Plug: 510mm
- Pickup Coil to Grommet: 100mm
Electrical Specifications
- Number of Wires: 4
- Number of Plugs: 1
- Number of Pins: 4
- Number of Poles: 12
Resistance Values
- Alternator (Yellow to Yellow): 0.4 Ω ±20%
- Alternator (Yellow to Ground): O.L (no continuity)
- Pickup Coil (Green to Red): 133 Ω ±20%
