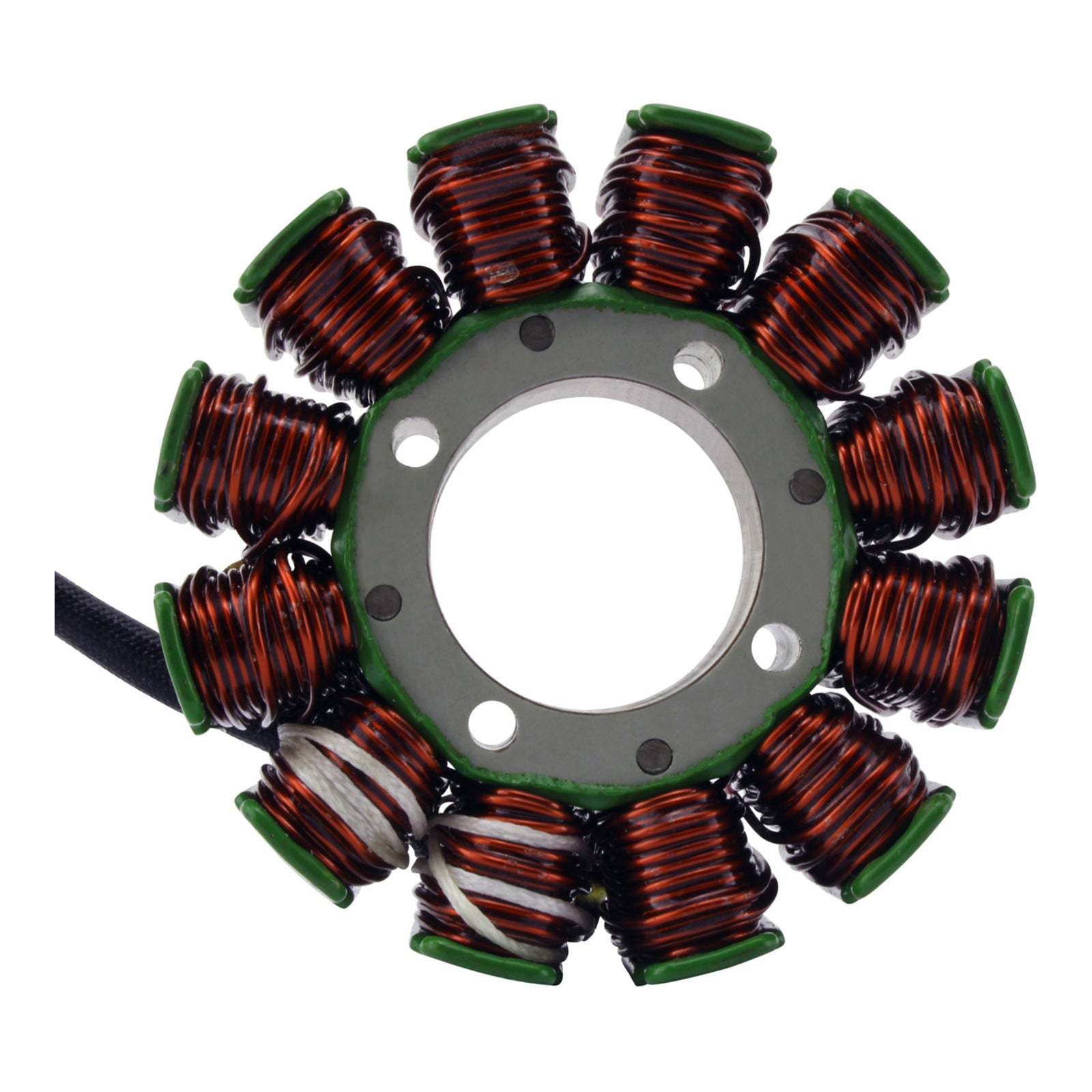

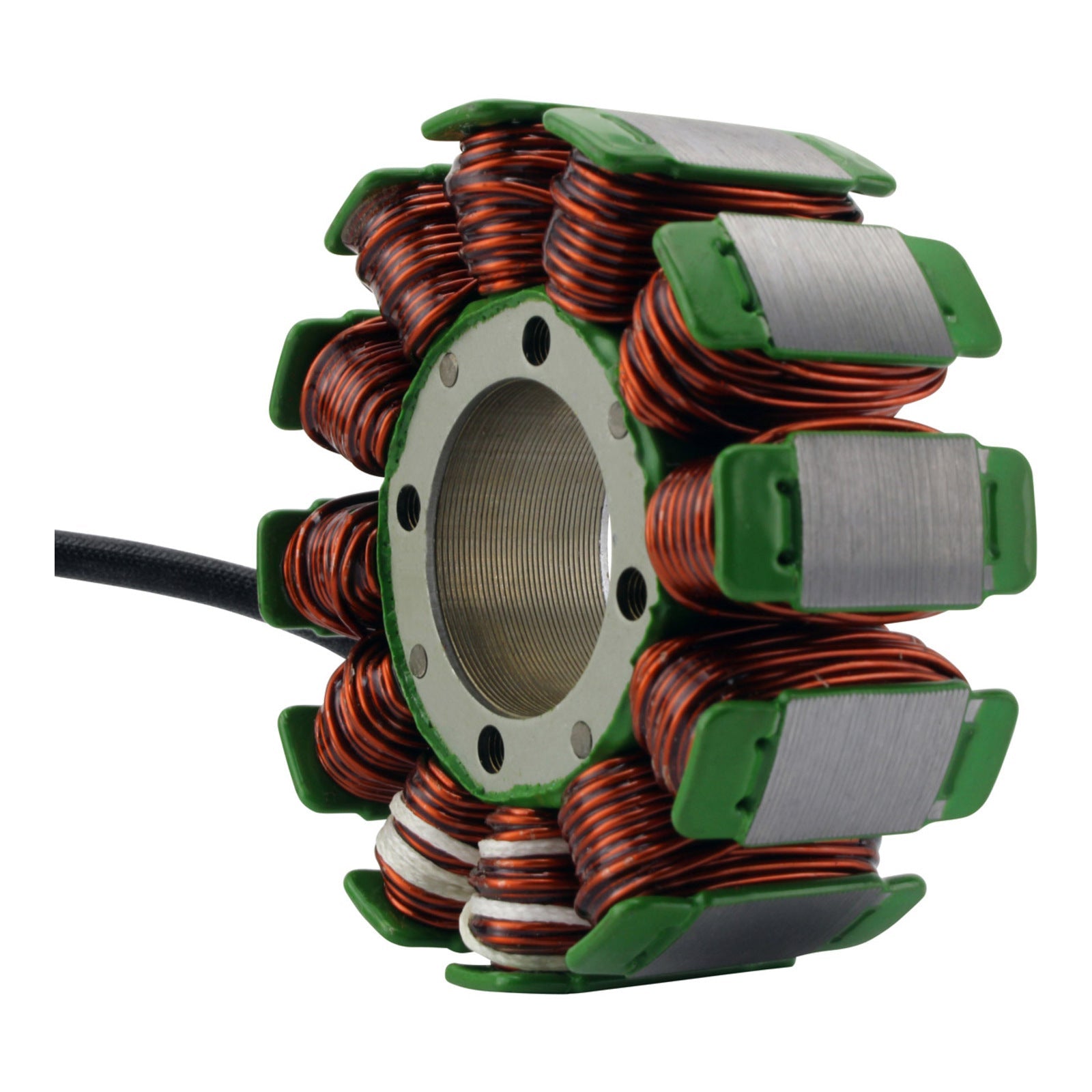

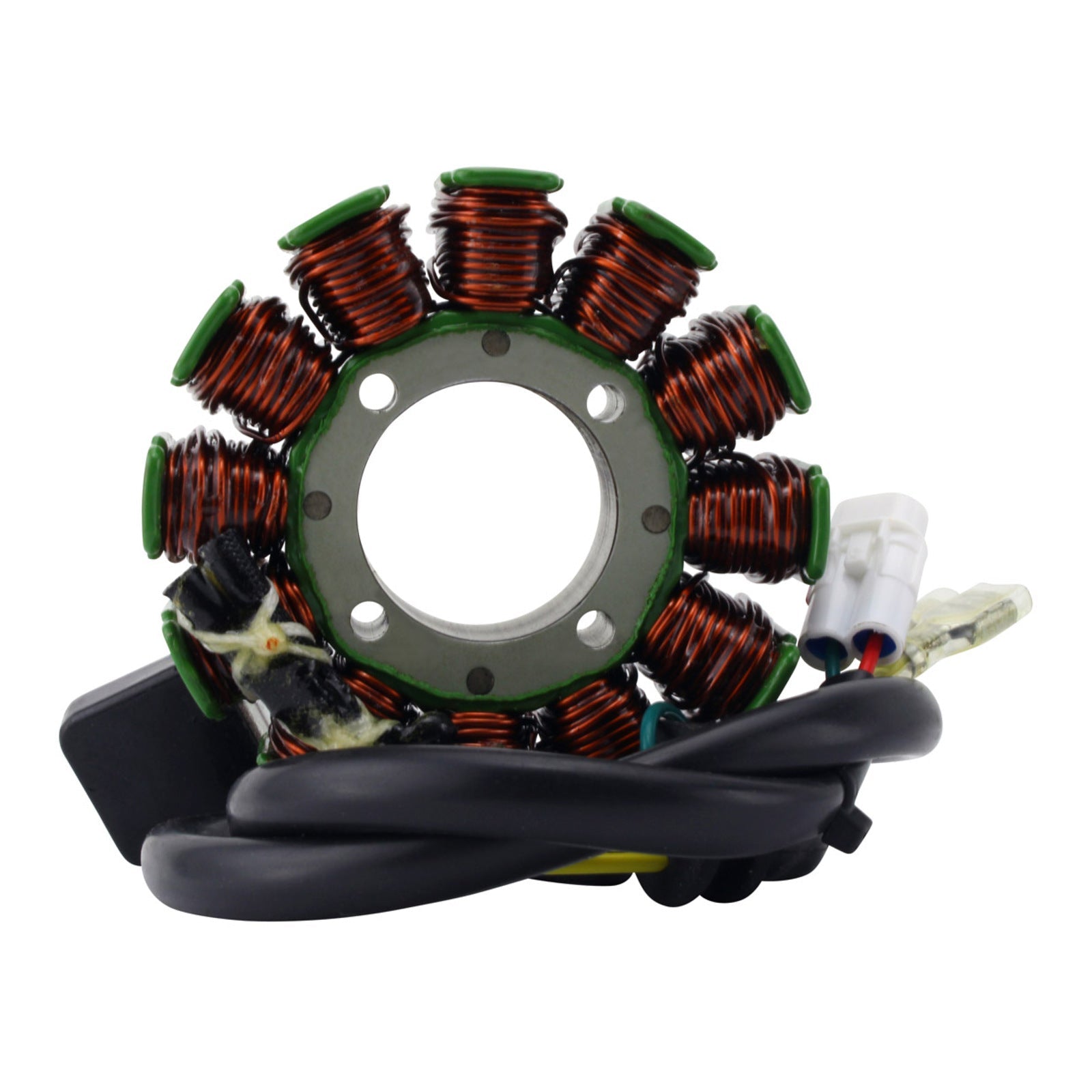

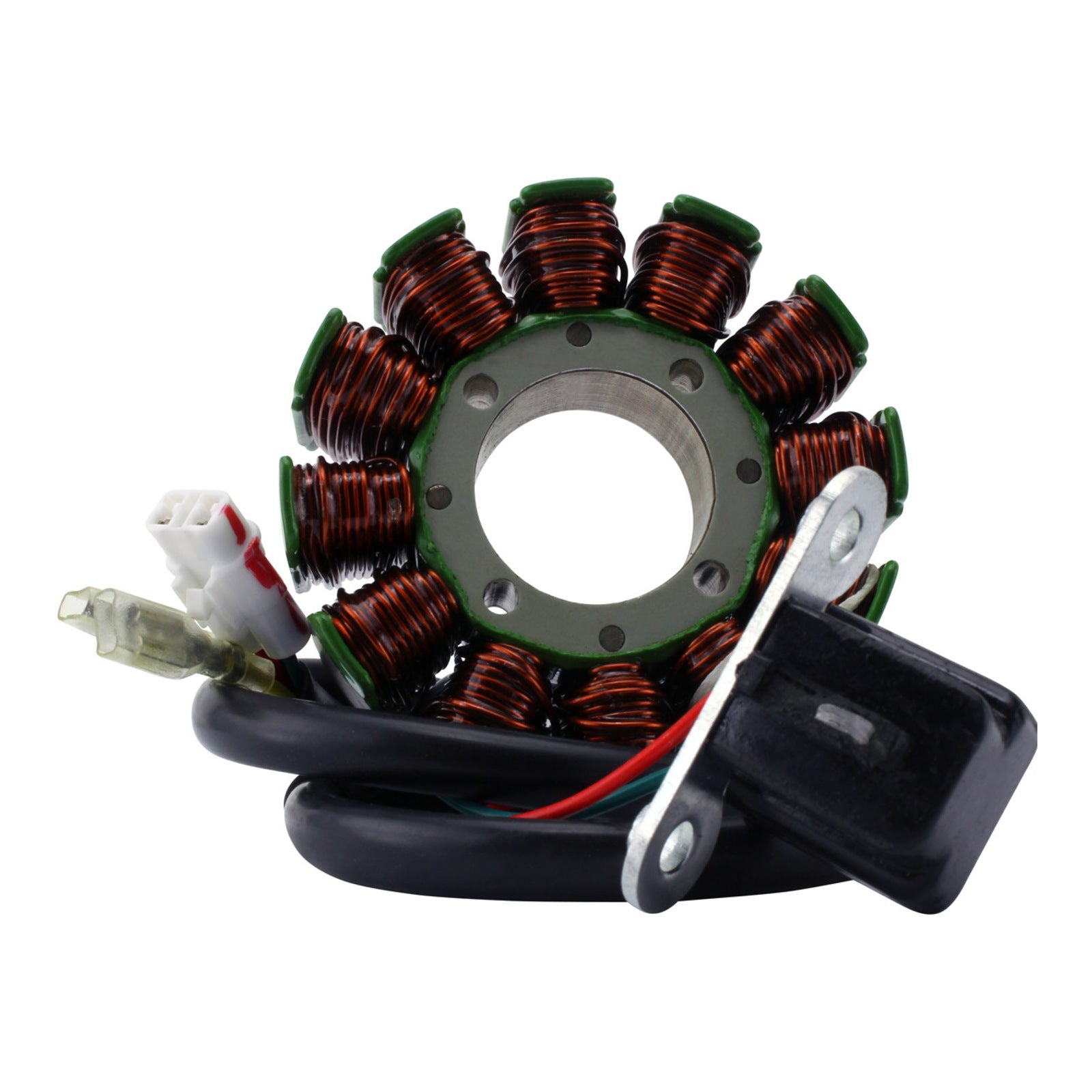

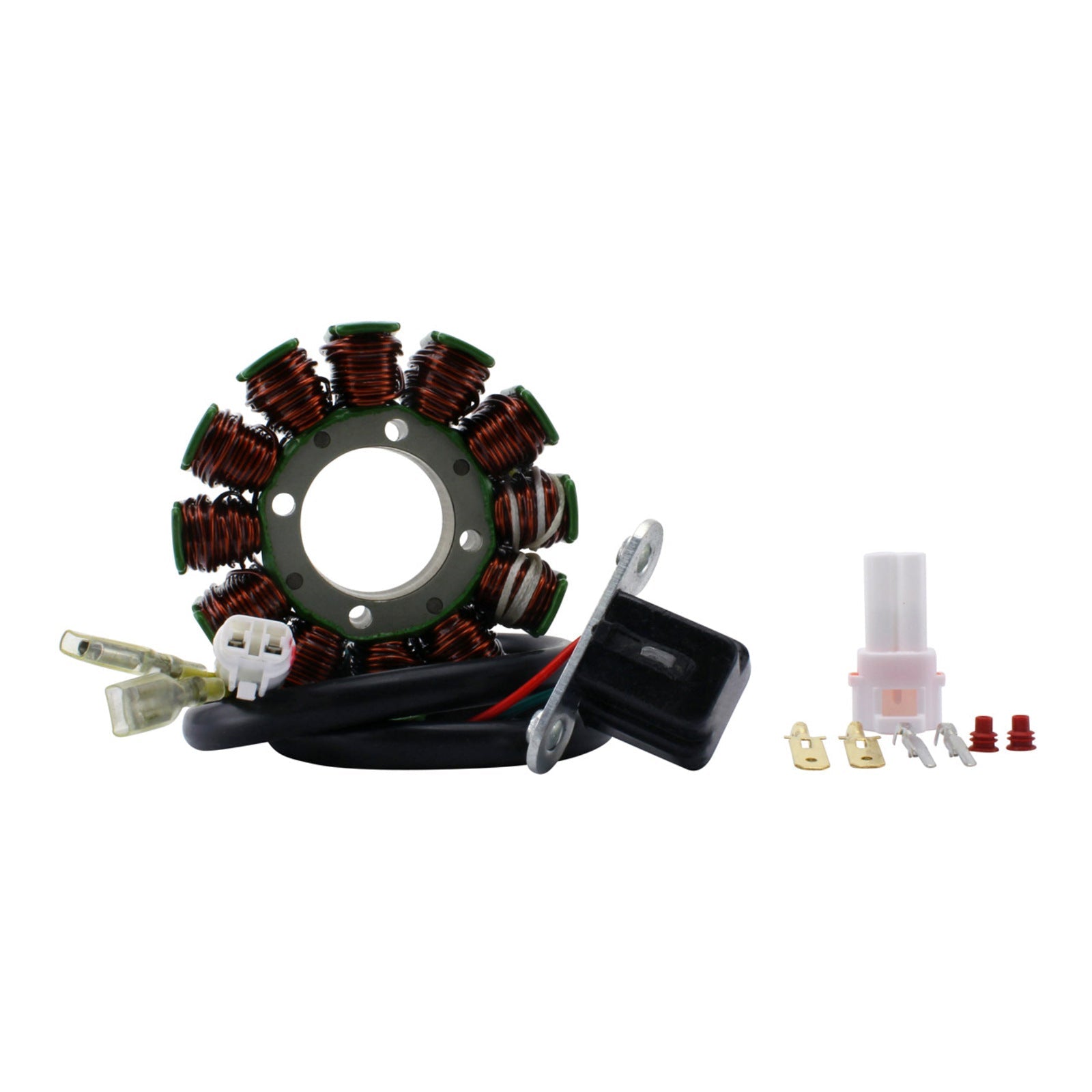

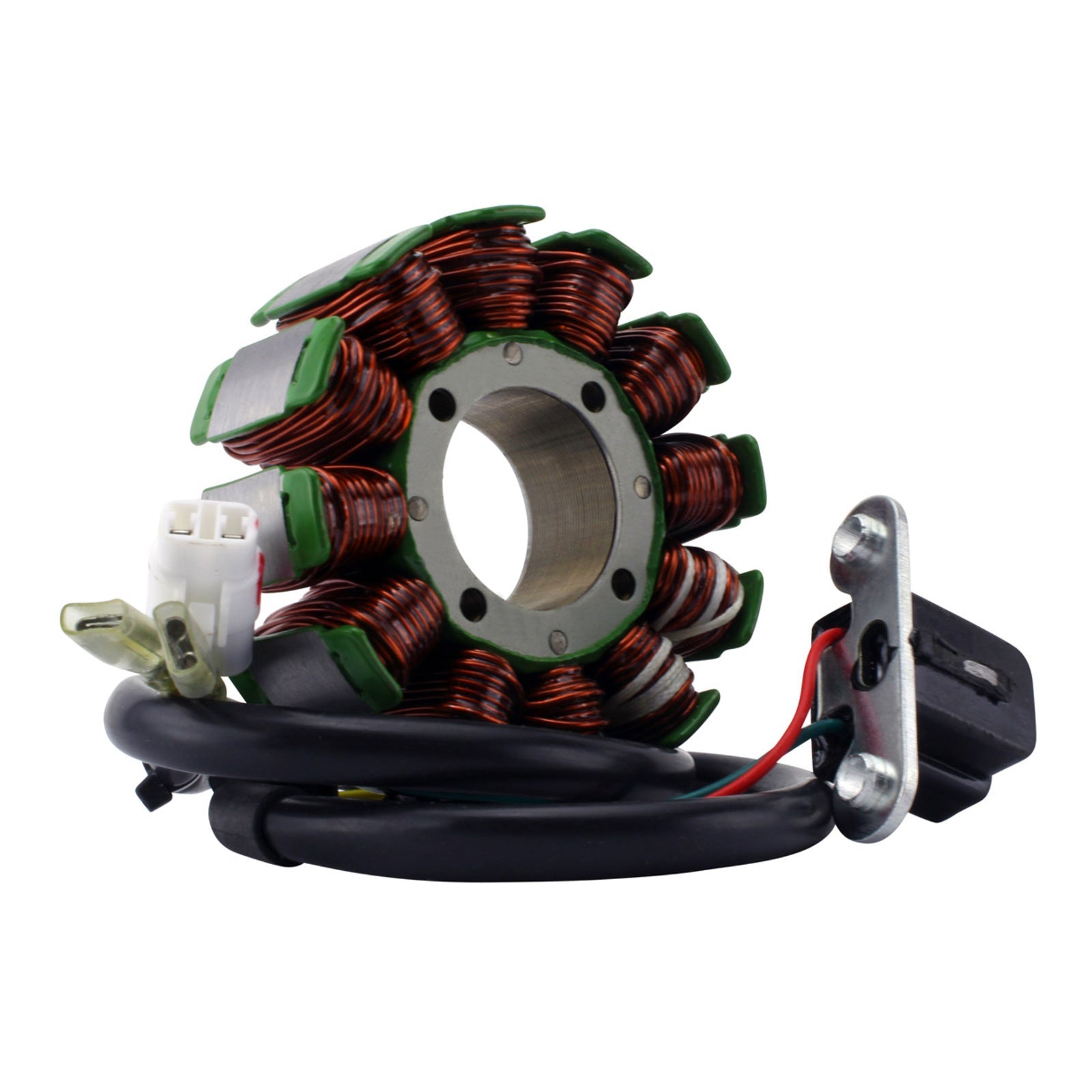

Brand new aftermarket stator.
Features:
- Direct replacement to your original unit.
- 80 watts DC.
- This stator increases power output significantly.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.

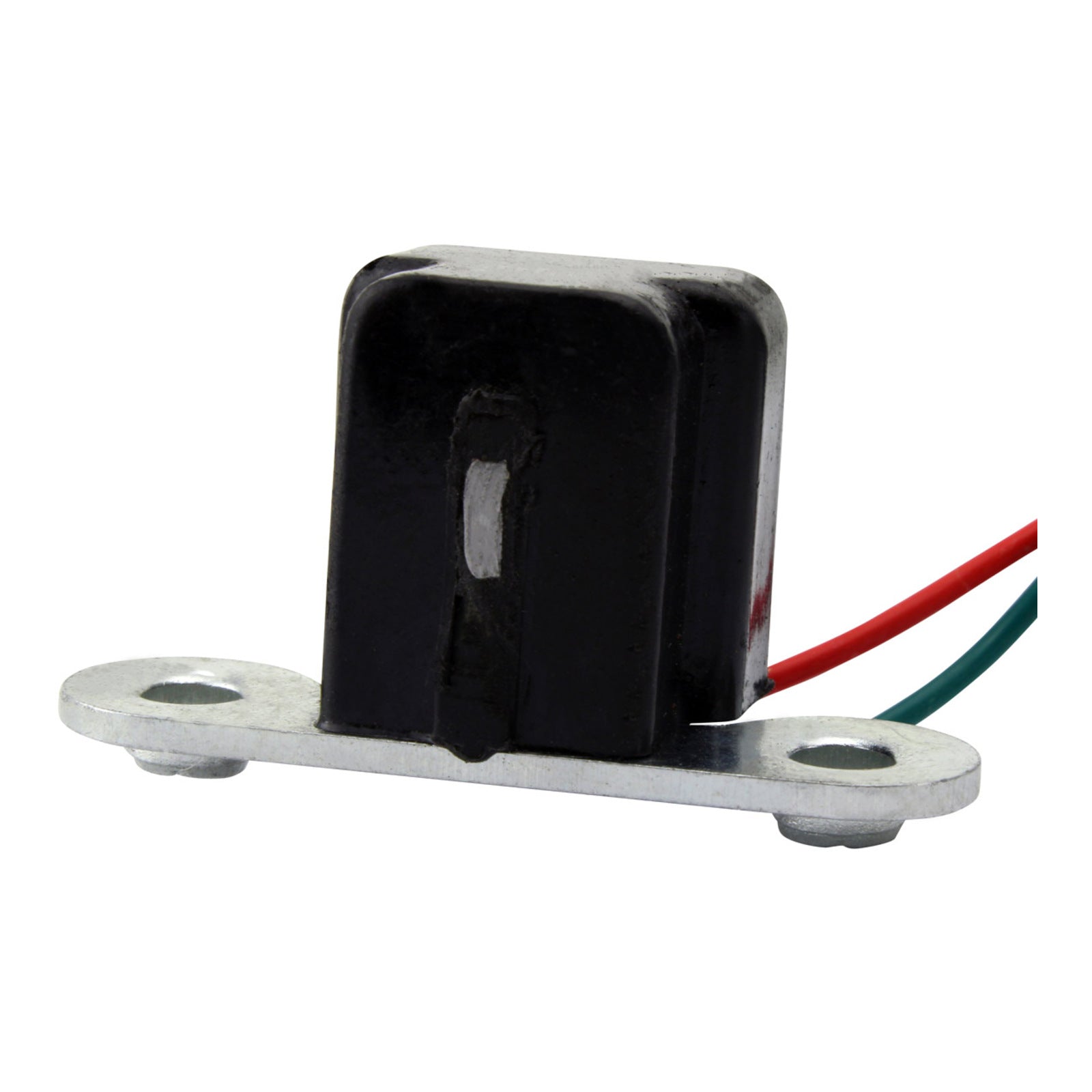

- Pick up pulsar coil included.

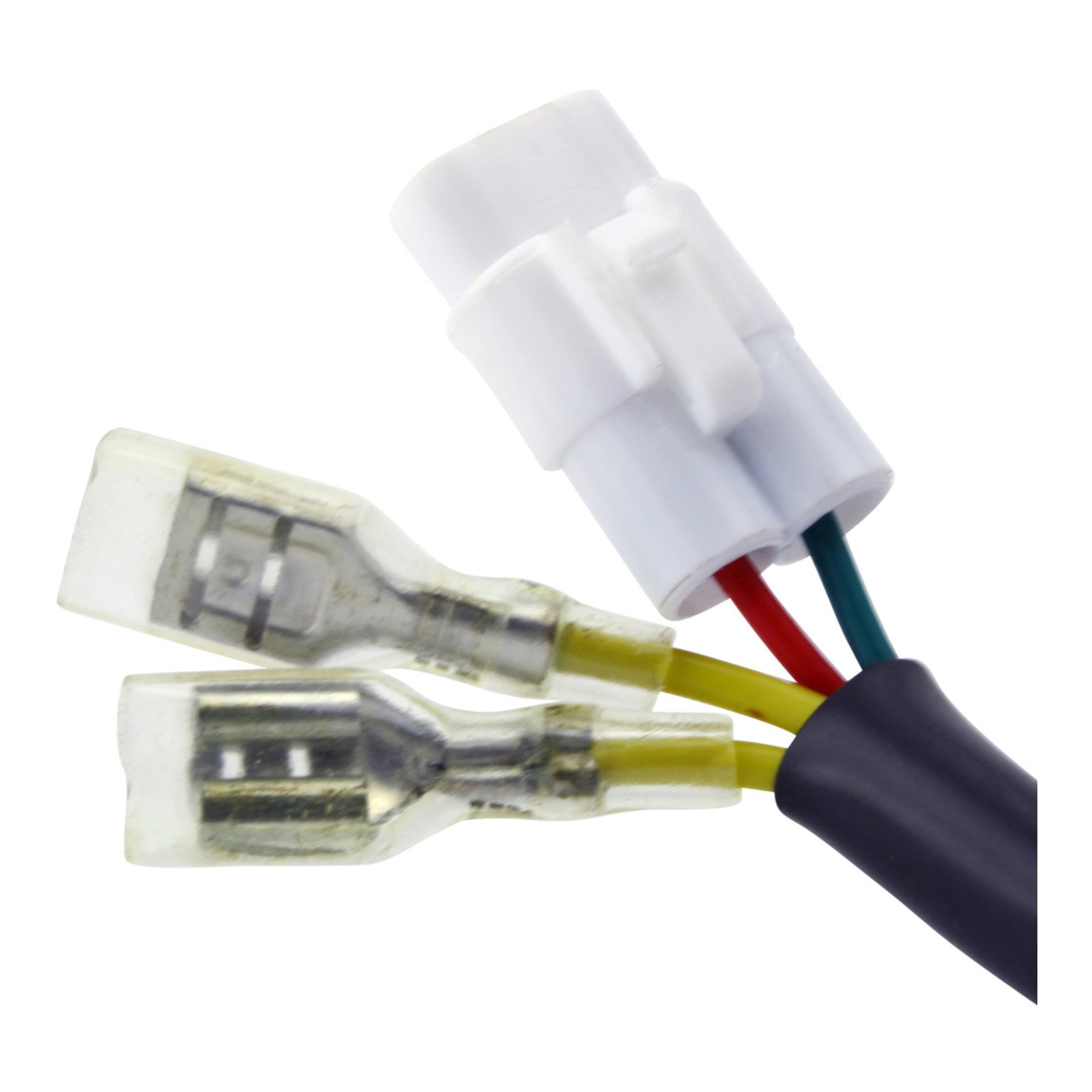

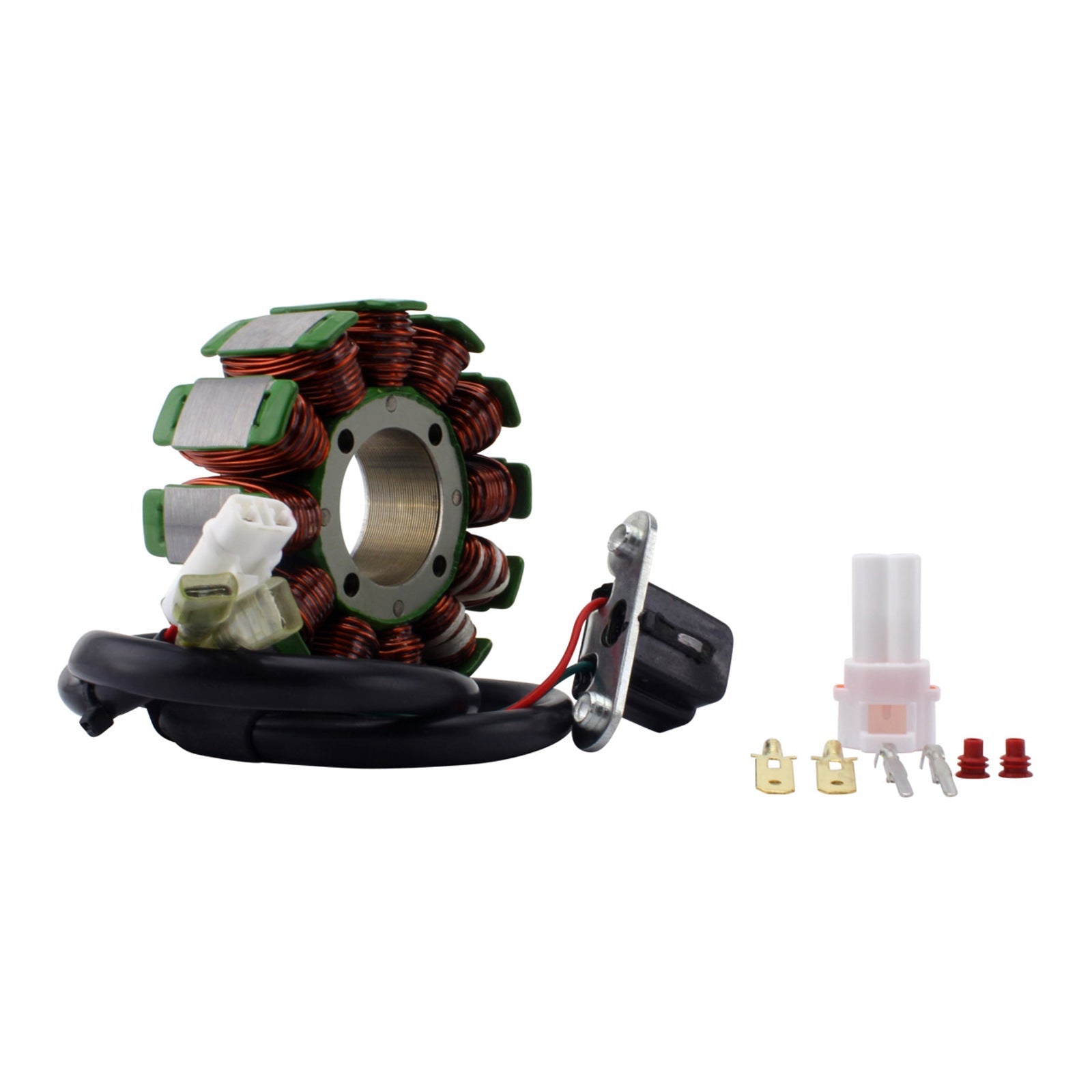

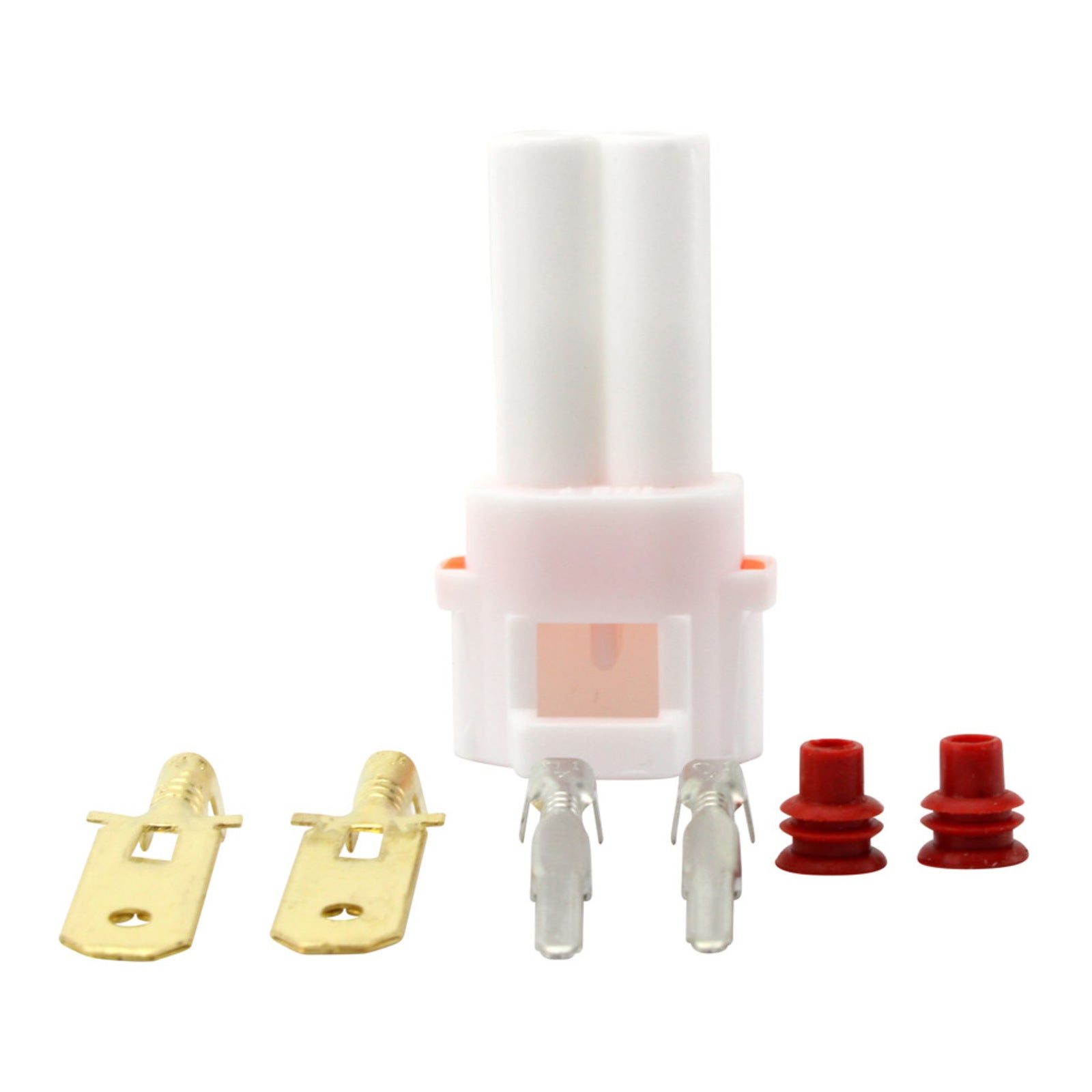

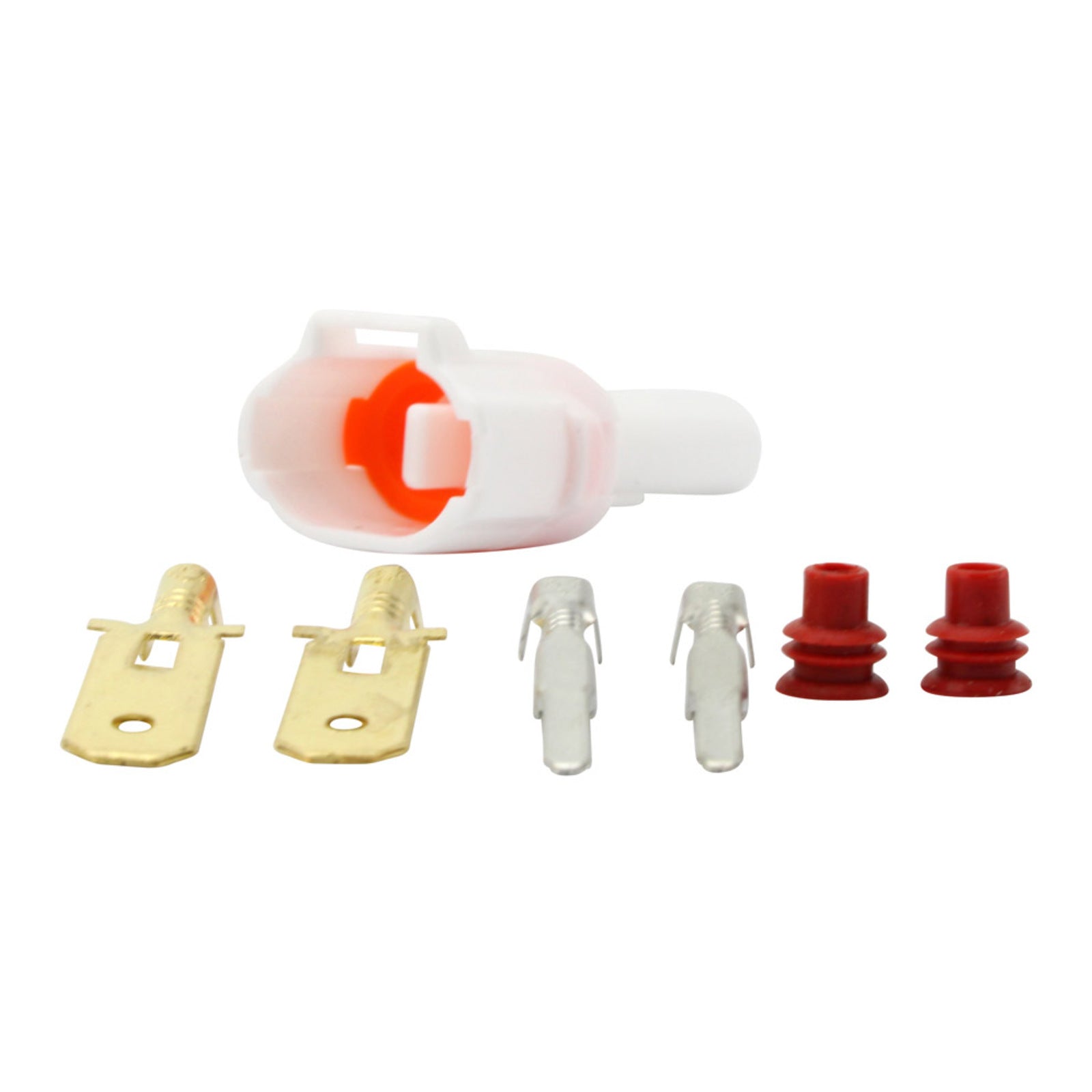

- Connectors included.
- Rubber grommet included.
- All products shipped are tested.
- 20% more output over stock, works with all other OEM components.
Specifications:
- Interior diameter: 29 mm
- Exterior diameter: 77 mm
- Thickness: 21 mm
- Stator wire length to grommet: 120 mm
- Wire length from grommet to plug: 520 mm
- Pickup coil wire length to grommet: 90 mm
- 4 wires
- 1 plug
- 4 pins
- 12 poles
- Alternator resistance (Yellow to Yellow): 0.4 Ω ±20%
- Alternator resistance (Yellow to Ground): O.L. (Open Loop)
- Pickup coil resistance (Red to Green): 130 Ω ±20%
2015 KTM 350 XCF
2015 KTM 350 SXF
2015 KTM 250 XCF
2015 KTM 250 SXF
2015 Husqvarna FC350
2015 Husqvarna FC250
2014 KTM 350 XCF
2014 KTM 350 SXF
2014 KTM 250 XCF
2014 KTM 250 SXF
2014 Husqvarna FC350
2014 Husqvarna FC250
2013 KTM 350 XCF
2013 KTM 350 SXF
2013 KTM 250 XCF
2013 KTM 250 XCFW
2013 KTM 250 SXF
2013 KTM 250 EXCF
2012 KTM 350 XCF
2012 KTM 350 SXF
2012 KTM 250 XCF
2012 KTM 250 XCFW
2012 KTM 250 SXF
2011 KTM 350 SXF
2011 KTM 250 XCF
2011 KTM 250 SXF
Sale
New
80W High Output Stator - KTM / Husqvarna 250 / 350 Models
by
RMSTATOR
SKU: RMS010107564
Become a Moto Member or Sign in to earn up to $8.55 Moto Credits on this purchase.
5% off
Brand new aftermarket stator.
Features:
- Direct replacement to your original unit.
- 80 watts DC.
- This stator increases power output significantly.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.
- Connectors included.
- Rubber grommet included.
- All products shipped are tested.
- 20% more output over stock, works with all other OEM components.
Specifications:
- Interior diameter: 29 mm
- Exterior diameter: 77 mm
- Thickness: 21 mm
- Stator wire length to grommet: 120 mm
- Wire length from grommet to plug: 520 mm
- Pickup coil wire length to grommet: 90 mm
- 4 wires
- 1 plug
- 4 pins
- 12 poles
- Alternator resistance (Yellow to Yellow): 0.4 Ω ±20%
- Alternator resistance (Yellow to Ground): O.L. (Open Loop)
- Pickup coil resistance (Red to Green): 130 Ω ±20%
2015 KTM 350 XCF
2015 KTM 350 SXF
2015 KTM 250 XCF
2015 KTM 250 SXF
2015 Husqvarna FC350
2015 Husqvarna FC250
2014 KTM 350 XCF
2014 KTM 350 SXF
2014 KTM 250 XCF
2014 KTM 250 SXF
2014 Husqvarna FC350
2014 Husqvarna FC250
2013 KTM 350 XCF
2013 KTM 350 SXF
2013 KTM 250 XCF
2013 KTM 250 XCFW
2013 KTM 250 SXF
2013 KTM 250 EXCF
2012 KTM 350 XCF
2012 KTM 350 SXF
2012 KTM 250 XCF
2012 KTM 250 XCFW
2012 KTM 250 SXF
2011 KTM 350 SXF
2011 KTM 250 XCF
2011 KTM 250 SXF
