Patrol E-FIVE S-SPEC MTB Bike - Gun Metal
The all-new Patrol E-Five is our first ever trail eMTB. Built around a custom developed carbon fibre frameset with modern trail-ready geometry. The E-Five is for riders who enjoy riding uphill as much as they do riding back down again.
Our new carbon construction combines a complete Shimano EP8 motor, battery and control system, with a sleek chassis providing 130mm of rear-wheel travel matched with 150mm travel upfront. To ensure an agile riding character our engineers have located the 630Wh Shimano BT8035 battery in a low position to ensure a balanced centre of gravity for fast direction changes.
The powerful Shimano EP8 motor provides 85nm of torque, is fully customisable via the Shimano E-Tube application, and has the option to switch between riding profiles on the trail.
Specification:
| E-Bike | |
|---|---|
| Drive Unit (Motor) | Shimano Steps EP8 |
| Battery | SHIMANO BT-E8036, 630Wh |
| Charger | - |
| Wheels | |
| Rims | 29" Sun Ringle Duroc SD37 MTB Rim |
| Rear Hub | SHIMANO SLX hubs |
| Inner Tubes | - |
| Spokes | - |
| Rear Tire | VEE Tire Co. Attack HPL, 29×2.50 |
| Front Tire | VEE Tire Co. Attack HPL, 29×2.50 |
| Front Hub | SHIMANO SLX hubs |
| Frameset | |
| Frame | PATROL Carbon Electric Trail, 12x148mm, 130mm Travel |
| Drivetrain | |
| Chainrings | SHIMANO SM-CRE80-12-B, 34t |
| Shift Levers | SHIMANO Deore XT M8100-R Shift Lever |
| Crankset | SHIMANO FC-M8150, SM-CRE80-12-SB, 34t |
| Chain | - |
| Rear Derailleur | SHIMANO Deore XT M8100, 12s |
| Bottom Braket | - |
| Cassette | Shimano SLX M7, 12s, 12-51t |
| Cockpit | |
| Seatpost | FOX Transfer Factory, 125mm |
| Saddle | - |
| Stem | Forged alloy, 4-bolt, 5mm rise, 40mm |
| Handlebars | - |
| Grips | - |
| Brakes | |
| Rear Brake | SHIMANO Deore XT BR-M8120 |
| Front Brake | SHIMANO Deore XT BR-M8120 |
| Suspension | |
| Fork | FOX 36 E Factory, 150mm Travel |
| Rear Shock | FOX Float X Factory |
* Specifications are subject to change without notice.
Sale
New
Bulky

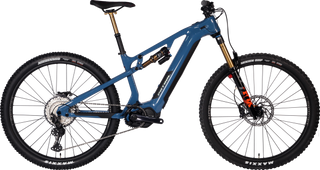

Patrol E-FIVE S-SPEC MTB Bike - Sapphire Blue
