-5%

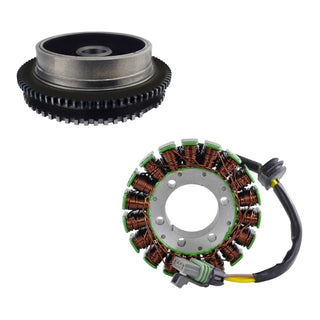

DT800 Charging Kit Assorted Polaris Models (Refer to Fitments) (RMS900-108154)

by RMSTATOR
SKU: RMS900108154
$1,079.99 $1,025.00 5% off
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_1.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_2.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_3.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_4.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_5.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_6.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_7.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_8.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_9.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_10.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154_11.JPG
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RM_STATOR/RMS900108154.JPG
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All product shipped are tested

Specifications of Stator:

  • Dimensions:
    • Int erior diameter: 40 mm
    • Exterior diameter: 106 mm
    • Thickness: 24 mm
    • Length of wires stator to grommet: 45 mm
    • Length of wires grommet to plug: 100 mm
  • Other specifications:
    • Number of wires: 4
    • Number of plugs: 1
    • Number of pins: 4
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.4 ohms +/-20%

Specifications of Flywheel:

  • Dimensions:
    • E xterior Diameter: 167 mm
    • Interior Diameter: 109 mm
    • Interior Diameter Center Housing: 27 mm
    • Exterior Diameter Center Housing: 40 mm
    • Thickness (exterior): 54 mm
    • Thickness (interior): 43 mm
Ask Our Moto Experts

Have a question regarding this product? Let one of our Moto Experts assist with your enquiry.

Email Us

2006 Polaris Sportsman 800 EFI
2007 Polaris Ranger 700 EFI 6X6
2007 Polaris Sportsman 800 EFI
2007 Polaris Sportsman X2 800 EFI
2008 Polaris Ranger 700 4X4
2008 Polaris Ranger 700 Crew 4X4
2008 Polaris Ranger 700 EFI 6X6
2008 Polaris RZR 800
2008 Polaris Sportsman 700 X2 Twin EFI
2008 Polaris Sportsman 800 EFI
2008 Polaris Sportsman X2 800 EFI
2009 Polaris Ranger 700 4X4
2009 Polaris Ranger 700 Crew 4X4
2009 Polaris Ranger 700 EFI 6X6
2009 Polaris RZR 800
2009 Polaris RZR S 800
2009 Polaris Sportsman 800 EFI
2009 Polaris Sportsman 800 EFI 6X6
2009 Polaris Sportsman X2 800 EFI
2010 Polaris Ranger 800 Full Size 6X6
2010 Polaris Ranger Crew 800
2010 Polaris RZR S 800
2010 Polaris Sportsman 800 EFI
2010 Polaris Sportsman 800 EFI 6X6
2010 Polaris Sportsman Big Boss 800 EFI 6X6
2011 Polaris Ranger 800
2011 Polaris Ranger 800 Full Size 6X6
2011 Polaris Ranger Crew 800
2011 Polaris RZR 4 800
2011 Polaris RZR 800
2011 Polaris RZR S 800
2011 Polaris Sportsman 800 EFI
2011 Polaris Sportsman 800 EFI 6X6
2012 Polaris Ranger 800
2012 Polaris Ranger 800 Full Size 6X6
2012 Polaris Ranger Crew 800
2012 Polaris Ranger XP 800
2012 Polaris RZR 4 800
2012 Polaris RZR 800
2012 Polaris RZR S 800
2012 Polaris Sportsman 800 EFI
2012 Polaris Sportsman 800 EFI 6X6
2012 Polaris Sportsman 800 Forest EFI
